Key Features (USP)
- Dual-Sensor Imaging Excellence
- 30x Optical Zoom Visible Camera: Capture ultra-HD 1080p@60fps footage with a 63° wide-angle to 2.3° narrow FOV for detailed reconnaissance.
- 640×512 IR Thermal Imager: Detect heat signatures in total darkness or through smoke/fog, perfect for search & rescue or night operations.
- Military-Grade Stabilization & Tracking
- 3-Axis Gyro-Stabilized Platform: Eliminate vibrations for crystal-clear imagery even at ±60°/s angular speeds.
- AI-Powered Auto-Tracking: Lock onto targets at ±48 pixels/frame for real-time tracking of moving objects.
- Long-Range Targeting Capabilities
- Laser Rangefinder: Measure distances up to 2km (±1m accuracy) for precise geolocation and mission planning.
- Ruggedized for Extreme Conditions
- Operates in -20°C to +60°C environments, with IP-rated resistance to dust/moisture (customizable).
- Low Power, High Efficiency
- ≤16W peak consumption ensures compatibility with small-to-medium UAVs.
Applications
- Defense & Security: Border patrol, target acquisition, battlefield reconnaissance.
- Industrial: Power line inspection, pipeline monitoring, disaster assessment.
- Public Safety: Search & rescue, firefighting, law enforcement surveillance.
- Agriculture: Crop health analysis, livestock monitoring.
Technical Specifications
| Parameter | Specifications |
|---|---|
| System indicators: | |
| Swing range | n×360° infinite positioning for orientation |
| Pitch angle | -110°~+110° |
| Roll angle | -50°~+50° |
| Maximum angular velocity | ≥60°/s |
| Maximum angular acceleration | ≥90°/s² |
| Angular position accuracy | ≤0.3° |
| Power supply | 11~16VDC |
| Power consumption | ≤10W(Average），≤16W(Max) |
| Weight | ≤960g |

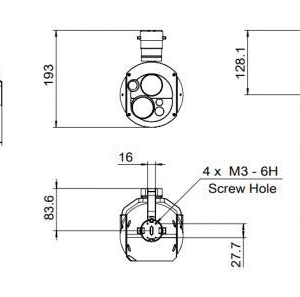

| Size | ≤125mm×159mm×173mm |
| Control interface | RS232 |
| Video output | Ethernet/SDL |
| Environmental adaptability: | |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+60℃ |
| Visible light 30x zoom imaging: | |
| Resolution and Frame Rate | 1920×1080@60fps |
| Field of view | 63°×35°~2.3°×1.3° |
| Visiblelight 8mm fixed focus imaging: | |
| Resolution and Frame Rate | 1920×1080@60fps |
| Field of view | 38.4°~22.2° |
| Infrared thermal imaging | |
| Resolution and Frame Rate | 640×512@60fps |
| Field of view | 12°×9° |
| Laser Ranging: | |
| Maximum range | ≥2km |
| Ranging accuracy | ±1m |
| Tracking module: | |
| Frame rate | 60fps |
| Racking speed | ±48 pixels per frame |
Compliance & Certifications
- Customizable to meet CE, FCC, and RoHS standards (upon request).
- Compatible with NATO-STANAG compliant systems for defense applications.
Why Choose SUNFLASER?
- 10+ Years of EO/IR Expertise: Trusted by global clients for rugged, mission-critical solutions.
- Fully Customizable: Adapt configurations (e.g., higher zoom, extended range) to your operational needs.
- Rapid Deployment: Plug-and-play integration with most commercial and tactical UAV platforms.
