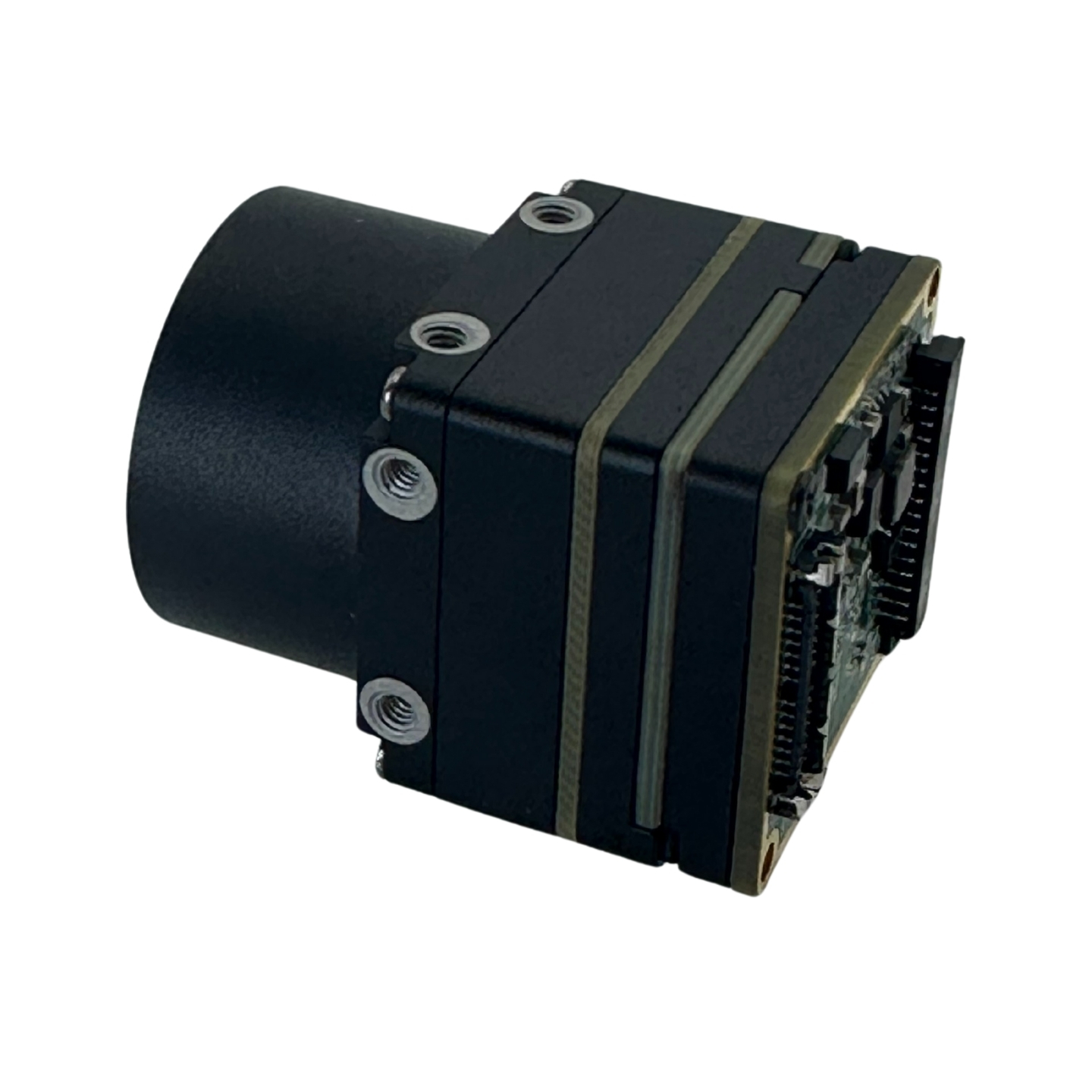

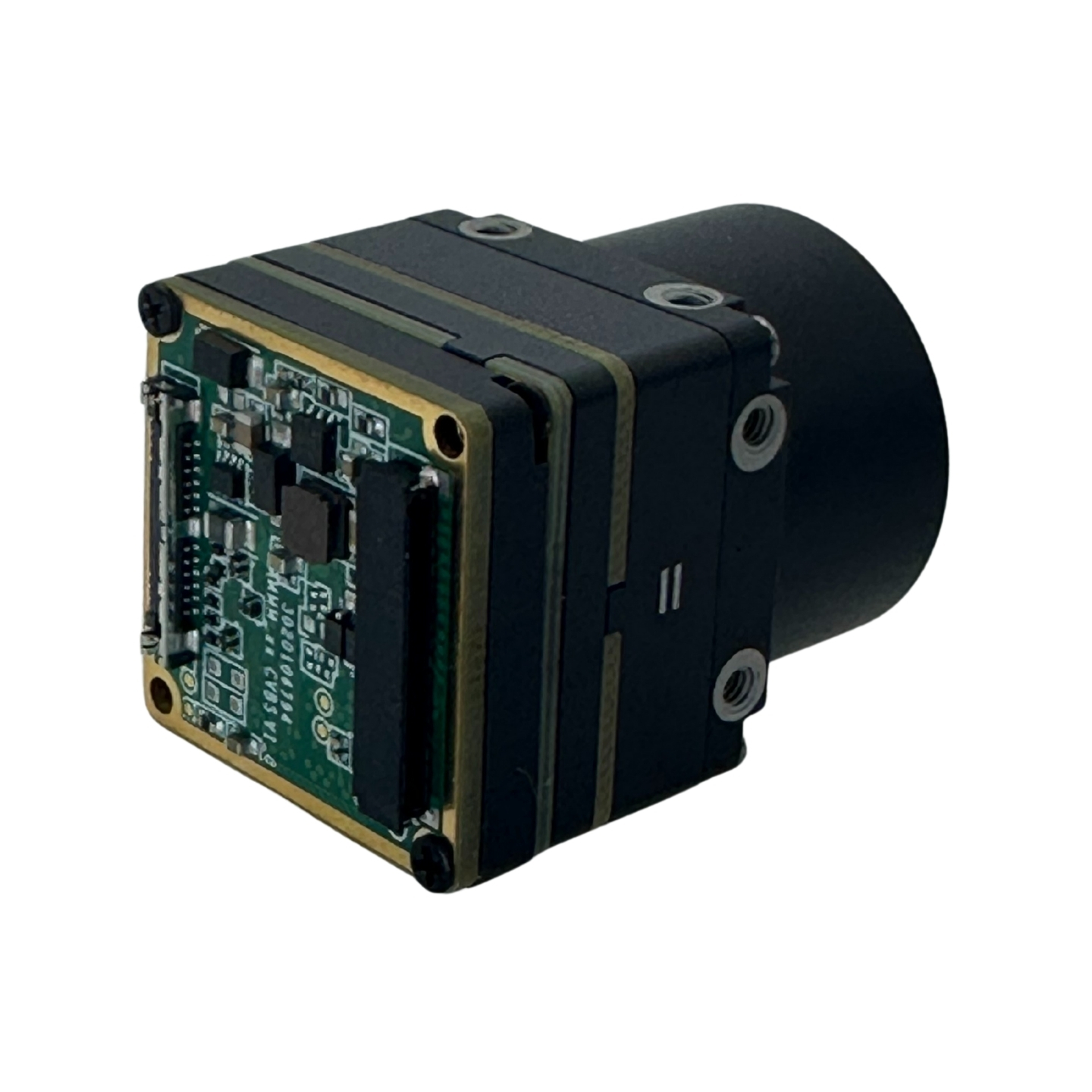

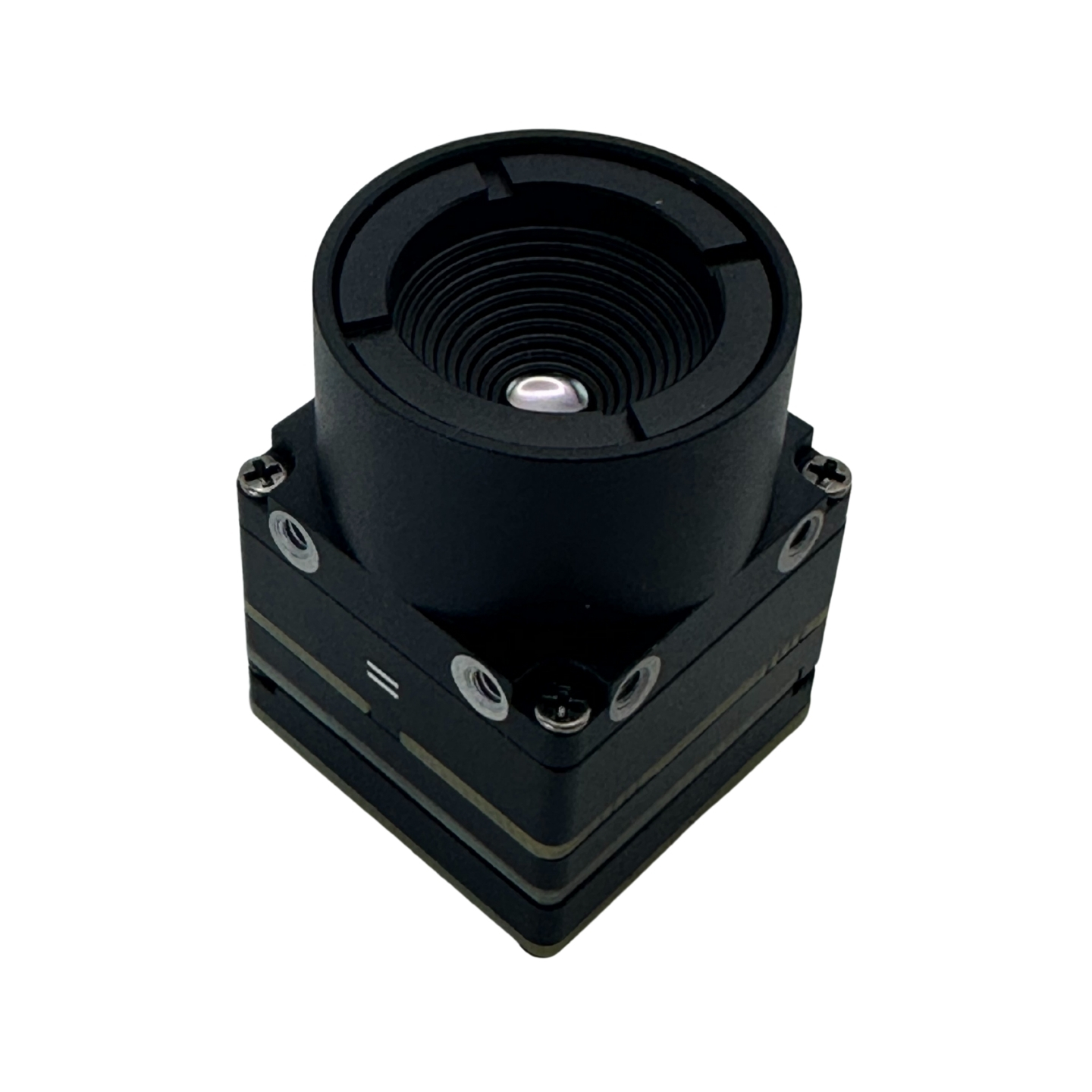

Core Selling Points
- SWaP-Optimized Design: Size/Weight/Power excellence – <50g total weight, -40°C to 80°C operational range.
- Plug-and-Play Flexibility: Multi-interface support (MIPI/DVP/USB) for rapid integration with AI platforms.
- Military-Grade Clarity: High refresh rate + Defect-Free Algorithm for smooth, artifact-free imaging.
- Cost-Effective Innovation: 30% lower deployment cost vs. competitors (patented ISP chip + WLP detector).
Technical Highlights
Imaging Prowess
- Resolutions: 640×512 / 384×288 / 256×192
- Detection Range: Up to 6.1km (pedestrian ID at 0.76km with 55mm lens).
- Zero Latency Processing: Onboard noise reduction + dynamic calibration.
Modular Flexibility
- Lens Options: 6 interchangeable lenses (9.1mm to 55mm) – Example: 9.1mm lens weighs 10.5g±5%, FOV 48°×38.4°.
- Hardware-Ready: Supports CVBS/I²C/UART control.
Key Applications
- Public Safety: Firefighter helmets, perimeter scanning.
- Drone Payloads: Search & rescue, industrial inspection.
- Automotive: Night vision for assisted driving.
- Smart Devices: Thermal sensing in IoT/robotics.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Overview: | |
| Detector Type | Vanadium Oxide (VOx) Uncooled Infrared Focal Plane Detector |
| Resolution | 256×192 / 384×288 / 640×512 |
| Detector Frame Rate | 25/50Hz (256×192) / 30/60Hz (384×288/640×512) |
| Pixel Pitch | 12μm |
| Response Band | 8~14μm |
| NETD (Noise Equivalent Temp Diff) | ≤40mK @25°C, F#1.0, 25Hz |
| Thermal Time Constant | <12ms |
| Image Adjustment: | |
| Non-uniformity Correction | Shutter correction / Stutter-Free Algorithm |
| Brightness/Contrast Adjustment | 0~100 adjustable levels |
| Polarity/Pseudo-color | White Hot / Black Hot / Multiple pseudo-color palettes |
| Electronic Zoom | 1.0~8.0× continuous zoom (0.1 step) |
| Image Flip | Vertical / Horizontal / Diagonal |
| Electrical Parameters: | |
| Analog Video Output | PAL / NTSC |
| Digital Video Interface | DVP / BT656 / USB2.0 / MIPI |
| Communication Interface | UART / I²C / USB2.0 |
| Power Input | 5V DC |
| Typical Power Consumption @25°C | <0.35W (256×192) / <0.42W (384×288) / <0.7W (640×512) |
| Physical Characteristics | |
| Weight (without lens) | <7g (256×192/384×288) / 8.6g (640×512) |
| Dimensions (without lens) | 21×21×10.3 mm |
| Environmental Compliance: | |
| Operating Temperature | -40°C ~ +80°C |
| Storage Temperature | -50°C ~ +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | 6.06g random vibration, all axes |
| Shock | 80g @4ms, sawtooth waveform, 3 axes (6 directions) |
Note: All parameters measured under laboratory conditions. Actual specifications and test methods subject to official test reports.
