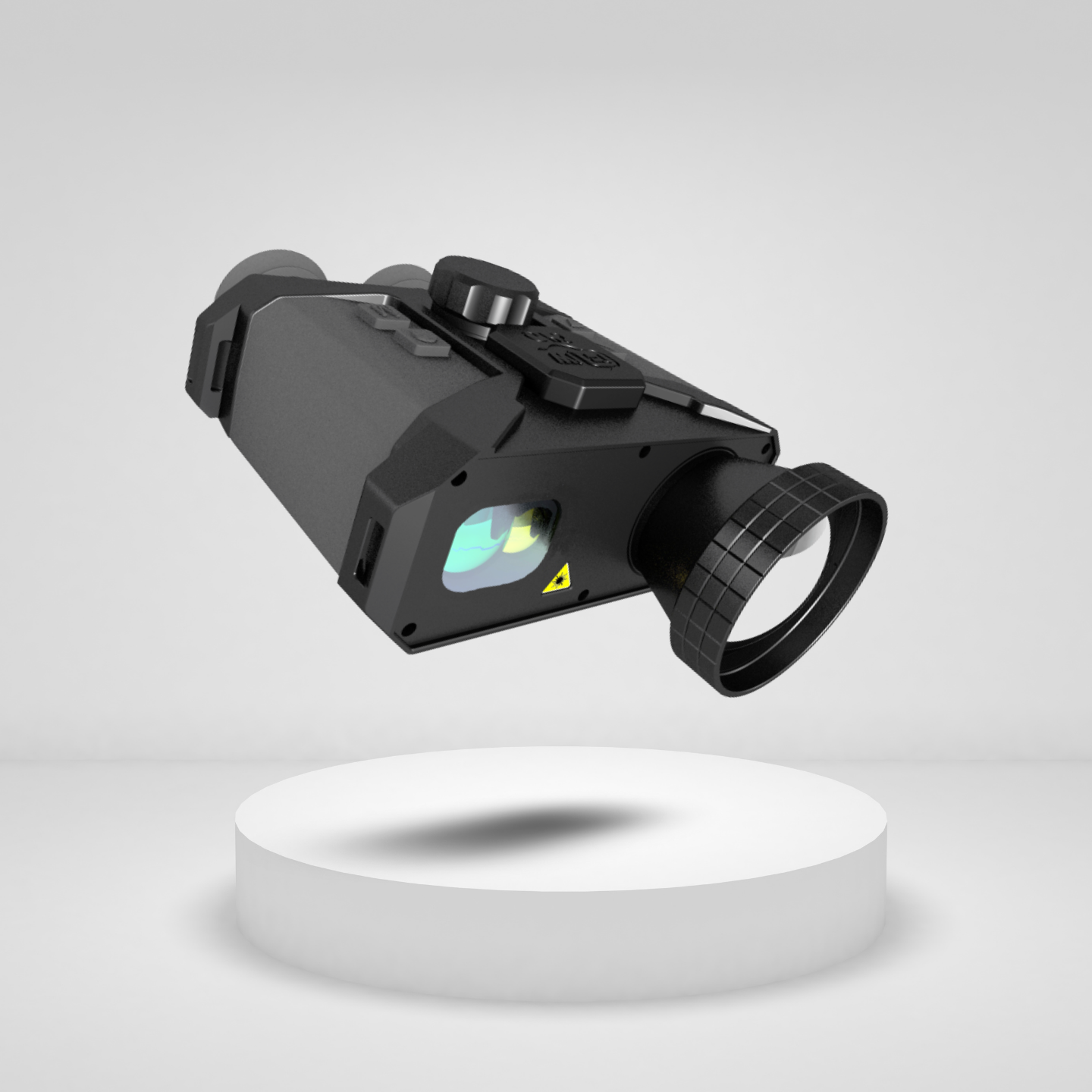

Key Selling Points
- Dual-Light Fusion Technology: Seamlessly switch between thermal imaging and laser ranging for 24/7 operational readiness.
- Military-Grade Clarity: Identify human targets at 800m and vehicles at 2.8km with 640×512 @12μm infrared resolution.
- Evidence-Ready Documentation: Record MPEG4 videos & capture JPEG photos to 16GB storage – ideal for legal documentation.
- Extreme Environment Durability: IP66 weatherproofing, -40°C to 65°C tolerance, and 30g impact resistance.
- 6+ Hour Continuous Operation: Powered by a single 26650 lithium battery for extended field use.
Precision in Action
- Thermal Imaging System
- Detector: 640×512 uncooled FPAs
- Frame Rate: 50Hz
- Sensitivity: <50mK @300K F#1.0
- Lens: 75mm F1.0 manual focus (5.9°×4.7° FOV)
- Smart Processing: Digital noise reduction, auto/manual gain, 1-4x digital zoom
- Laser Rangefinder Performance
- Range: 10m–4km (±1m accuracy)
- Wavelength: Eye-safe 1535nm
- Target Recognition: 98% success rate
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model: | SakerEye640-4 |
| Thermal Imaging System: | |
| Detector type | Uncooled FPA |
| Detector specification | 640 * 512@12μm |
| Spectral band | 8~14μm |
| Frame rate | 50Hz |
| Sensitivity | <50mK@300kF#1.0 |
| Screen | 1024x768 0.39"OLED X2 |
| Startup time | <6 seconds |
| Image denoising | Digital filtering |
| Gain adjustment | Auto/manual adjustment |
| E-Zoom | 1X/2X/4X |
| Lens focal length | f=75mm F1.0 |
| Field of view | 5.9°×4.7° |
| Focusing method | Manual |
| Photo function | JPEG format photos |
| Video function | MPEG4 format videos |
| Storage & output | 16GB; USB 2.0 Type-A |
| Human (1.7m×0.5m) | Detection: 2.8km Recognition: 0.8km |
| Vehicle(2.3m×2.3m) | Detection: 7.0km Recognition: 2.8km |
| Laser Rangefinder: | |
| Wavelength | 1535nm |
| Range | 10m-4km (Under >20km visibility, for large targets) |
| Accuracy | ±1m |
| Correct Measurement Rate | >98% |
| Power Supply: | |
| Power source | One 26650 rechargeable lithium battery 3.7V@5000mAh |
| Operating voltage range | DC: 2.8V~4.2V |
| Normal operating power | <2.5W |
| Operating time | Continuous operation: ≥6h |
| Environment: | |
| Protection rating | IP66 |
| Housing material | 6061 aluminum |
| Vibration resistance | Sweep frequency 5-200-5Hz, acceleration 2.5g |
| Shock resistance | 30g/11ms half-sine wave |
| Storage temperature | -40℃~+65℃ |
| Operating temperature | -30℃~+60℃ |
| Product weight | 1.5kg |
| Overall dimensions | (L181×W227×H96) mm |
Critical Applications
- Law Enforcement: Evidence collection, suspect tracking
- Wildlife Conservation: Night observation without disturbance
- Industrial Inspections: Long-range equipment monitoring
- Border Security: 24/7 surveillance in extreme conditions
Safety & Usage Notes
⚠️ Laser Safety: Never aim at aircraft or reflective surfaces.
⚠️ Battery Care: Charge at 0°C–45°C to prevent damage.
⚠️ Thermal Calibration: Manual focus required for optimal clarity.
