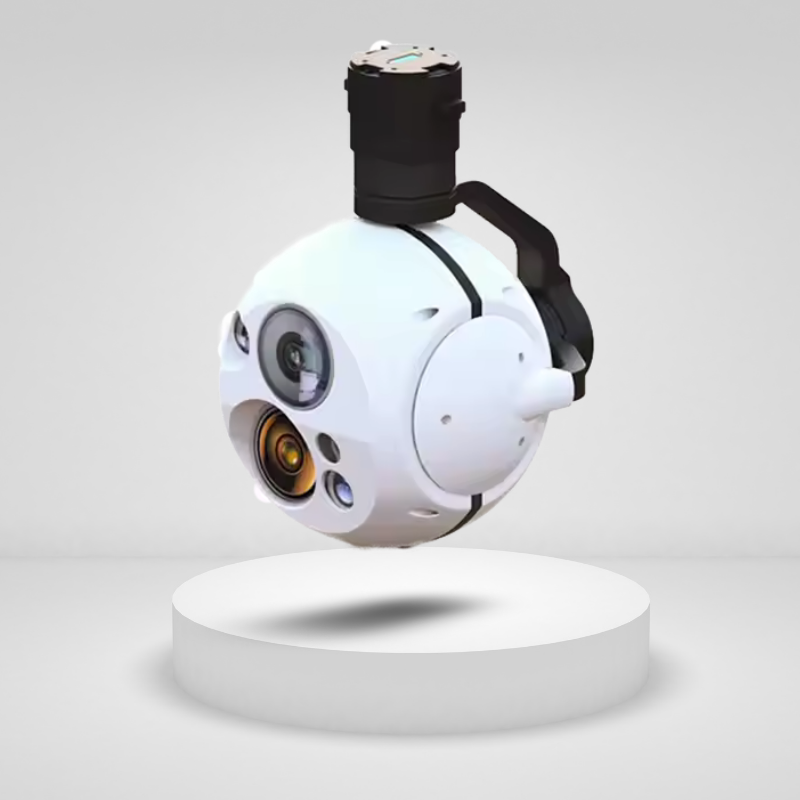

Key Features
- Tri-Sensor Integration
- 4K Visible Camera: 8MP resolution, 35mm focal length, 10.1°×7.6° FOV, 7x digital zoom.
- 1080P Visible Camera: 2MP resolution, 6mm focal length, 60°×43° FOV, 9x digital zoom.
- Thermal Imaging: 640×512 resolution, 45mm lens, 8–14μm wavelength, ±3℃ accuracy, global temperature measurement.
- Stabilization & Control
- Two-axis stabilization with ±0.02° (pitch/roll) and ±0.03° (yaw) precision.
- Auto-drift correction, one-click recentering, and adaptive speed control based on zoom level.
- Smart Connectivity
- RTSP streaming for real-time H.264/H.265 video output.
- TF card dual recording (4K + 1080P simultaneous).
- Control via Ethernet, UART, S.BUS, or PWM (optional).
- AI-Powered Analytics
- Object tracking (16×16 to 256×256 pixels), 100-target recognition (humans/vehicles), and 2s occlusion tolerance.
Applications
- Public Safety: Search & rescue, firefighting, and surveillance.
- Industrial Inspection: Power line inspection, pipeline monitoring.
- Environmental Monitoring: Wildlife tracking, forestry management.
- Aerial Photography: Cinematic 4K footage with stabilized imaging.
Key Selling Points
- Ultra-Lightweight: 510g ±10g, ideal for drone integration.
- Multi-Sensor Fusion: Seamless switching between thermal/visible feeds.
- Low Power Consumption: 6.4W dynamic power for extended missions.
- Rugged Design: Operates in -10°C to +55°C and 20–80% humidity.
Specifications
| Parameter | Specification |
|---|---|
| Voltage | DC 12V-26 .2V |
| Power Supply | Dynamic 6.6w |
| Specification: | |
| Yaw Angle | -20°～+180° |
| Pitch Angle | 360° |
| Pitch and Roll Jitter Angle | ±0.02 ° |
| Horizontal Jitter Angle | ±0.03 ° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | When the gimbal rotates, the speed is adapted based on the current speed mode the visible light camera multiple. |
| Control Modes | Support network IP control, S.BUS control, UART control (PWM control is optional) |
| 4K EO: | |
| CMOS | CMOS SENSOR ：8MP |
| Dogital zoom | Suport 7x digital zoom |
| Compressed storage mode | H264，H265,Video streaming local TF card storage 4K |
| FOV | 35mm focal-length, FOV： 10.1 °x 7.6 ° |
| 1080P EO: | |
| CMOS | CMOS SENSOR ：2MP |
| Dogital zoom | Suport 9x digital zoom |
| Compressed storage mode | H264，Video streaming local TF card storage 4K |
| FOV | 6mm focal-length，FOV： 60 °x 43 ° |
| IR Thermal: | |
| Resolution | 640×512 pixel |
| Pixel spacing | 12 μm |
| Type | Uncooled vanadium oxide |
| Wavelength range | 8～14 μm |
| NETD | ≤50mk@25℃@F1.0 |
| Video output | IP output |
| FOV | 45mm focal-length，FOV：9.8° ×7.8° |
| Global temperature measurement | Support global temperature measurement, optional full-pixel temperature saving function |
| Tracking Identification: | |
| Minimum recognized size | 16×16 pixel |
| Maximum tracking target size | 256×256 pixel |
| Maximum occlusion time | 2s |
| Maximum speed supported | 50pixel/frame |
| Maximum number of recognition | 100 |
| Recognized categories | Human and vehicle |
| Minimum recognized size | 32×32 pixel |
| Network output mode | 1080P 30fps /4K 30fps |
| Size | φ :148mm H:136mm |
| Working environment | -10℃ ~ +55℃ / 20% ~ 80% RH |
| Storage environment | -20℃~ +60℃ / 20% ~ 95% RH |
| Application | UAV |
| Weight | 510±10g |
Compliance & Certifications
Note: Certifications pending confirmation. Common standards for markets include:
- CE (EMC Directive), FCC (Part 15B), RoHS.
Usage Workflow
- Setup: Mount on drones/vehicles, connect via Ethernet/S.BUS.
- Power On: <20s boot time; RTSP stream auto-initializes.
- Control: Use ground station software for zoom, focus, recording, and AI tracking.
- Post-Mission: Retrieve TF card or access files via SMB .
Why Choose Us?
We specializes in integrated imaging solutions with rapid technical support and firmware updates. Contact us for OEM/ODM customization and compliance documentation.
