Core Selling Points
- Ultra-Lightweight Design – 13kg total weight (30% lighter than comparable systems) enables extended flight times for UAVs/rotary-wing aircraft.
- Military-Grade Stability – ≤40μrad RMS stabilization accuracy (±0.0023°) ensures clear targeting in turbulent conditions.
- Tri-Sensor Fusion – Seamless integration of HD visible light (1920×1080), cooled IR thermal imager (640×512), and 1.064μm laser designator.
- Extreme Environment Ready – Operational from -40°C to +55°C (Arctic to desert deployment).
- 12000m Laser Range – Longest-distance targeting in its class (±0.5m accuracy).
Key Applications
- Military ISR (Intelligence, Surveillance, Reconnaissance)
- Border patrol & coastal monitoring
- Search and rescue operations
- Critical infrastructure protection
- Wildfire monitoring (thermal detection)
Technical Superiority in Action
- Scan & Lock – Automatic target tracking at ≥60°/s scan speed
- Geo-Tagging – Real-time GPS coordinate mapping (compatible with NATO STANAG standards)
- Multi-Target Processing – Simultaneous tracking of 5+ objects with threat prioritization
- Laser Guidance – Paint targets for precision-guided munitions
Specifications
| Parameter | Specification |
|---|---|
| Weight | Turret: <13kg; Control equipment: <10kg |

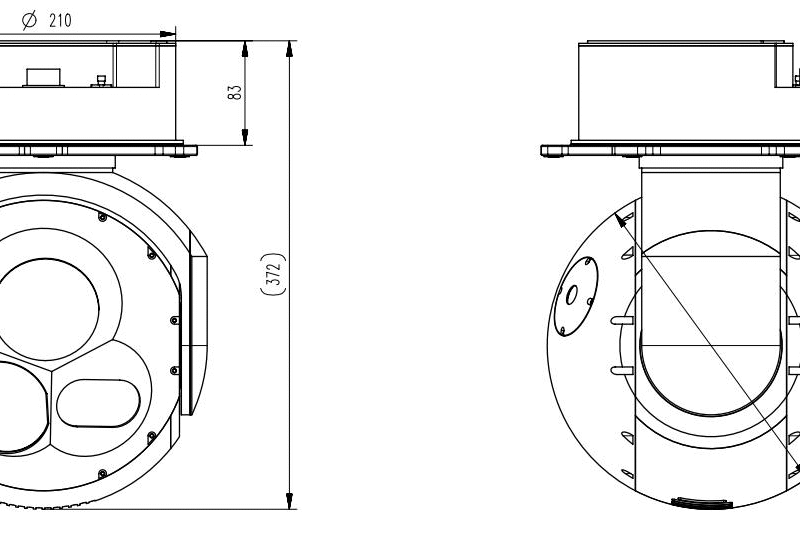

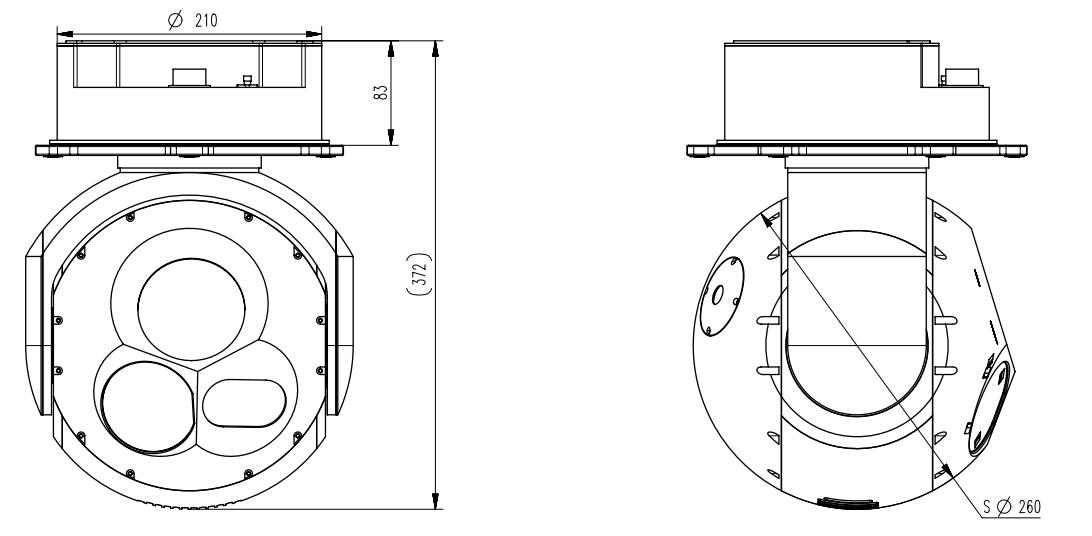

| Volume | Turret: φ260mm×372mm Control equipment: 486mm×325mm×85mm |
| Rotation ranger | Azimuth: 360°continuous; Elevation: +20°~-110°(horizontal forward is 0°) |
| Stabilization accuracy | <0.035mrad(RMS) |
| Recording time | ≥5 hours |
| Visible light: | |
| Features like autofocus and image enhancement | |
| Resolution | 1920×1080,color |
| FOV | 2°×1.1°~19.8°×11.1°continuous |
| Effective working distance | Detection range: ≥9km(For life-saving kayaks of 3m×3m) Identification range: ≥6km(For life-saving kayaks of 3m×3m) |
| IR: | |
| Features such as polarity conversion,non-uniform correction, and image enhancement | |
| Resolution | Mid-wave 640×512(Stirling cooling) |
| FOV | 1.84⁰×1.5°~35°×28°continuous |
| Effective working distance | Detection range: ≥8km(For life-saving kayaks of 3m×3m) Identification range: ≥5km(For life-saving kayaks of 3m×3m) |
| Laser irradiator: | |
| Operating wavelength | 1064nm |
| Ranging range | 30m～12000m |
| Energy | ≥50mJ |
| Beam scatter angle | ≤0.35mrad |
| Irradiation distance | ≥5km |
| PS: | 28VDC, peak current is no more than 7A |
| External interface: | |
| Video interface | One digital video output One HD-SDI format high definition video output |
| Communication interface | One RS422 |
| Environment adaptability: | |
| Operation temperature | -40℃～＋60℃ |
| Storage temperature | -45℃～＋70℃ |
Note:We offer professional OEM/ODM services including solution design and manufacturing for all products, and have a full-process technical support team.
