Electro-Optical Pod SFEAGLE240A

The SFEAGLE240A integrates a tri-sensor payload (HD visible, cryogenically-cooled IR, 1.54μm laser rangefinder) with elite stabilization (≤40μrad RMS) for demanding defense and industrial missions. Engineered for fixed-wing/UAV integration (<10kg), it delivers 9km visible/IR detection and 8km laser ranging – setting new standards for long-range ISR in Arctic to desert environments (-40°C to +55°C).

Add to quote

Key Selling Points

✅ Cooled IR Advantage

3-5μm Cryogenically-Cooled Sensor: 2x detection range vs uncooled competitors (9km vs 4km)
640×512 Resolution: Identify 4×6m targets at NATO-standard ranges

✅ Precision Stabilization & Tracking

≤40μrad RMS Stability (Industry-leading)
≤0.1mrad Tracking Accuracy: Lock fast-moving threats at ≥10°/s

✅ Extended-Range Capabilities

8km Laser Rangefinding: Artillery-grade distance measurement
Geo-Targeting: RTK-corrected coordinates via aircraft data fusion

✅ Heavy-Platform Ready

Ruggedized Construction: Φ240×361mm | <10kg (fits Grey Eagle-class UAVs)
28VDC Power: <100W avg. consumption

Technical Specifications

Parameter	Specification
Weight	Turret: <9.8kg; Control equipment: <10kg

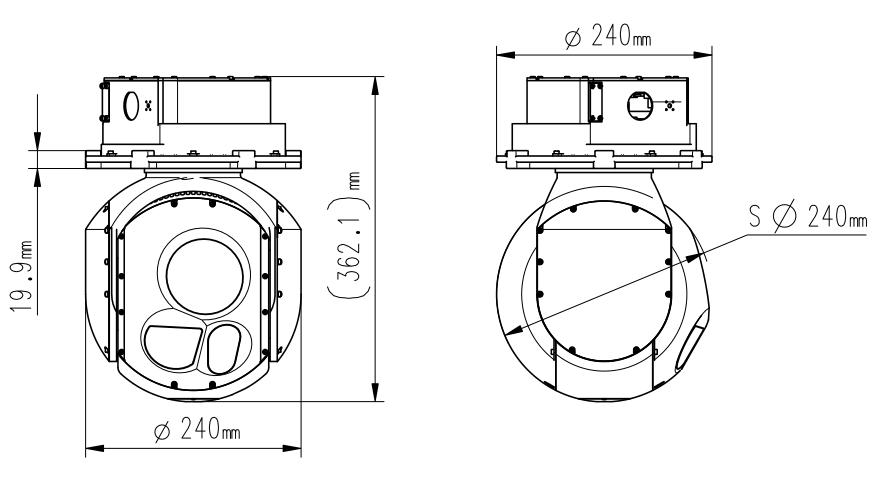

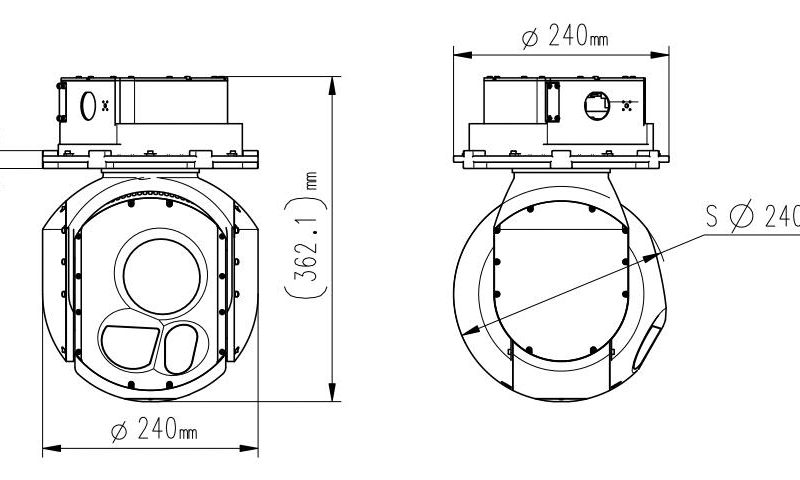

Volume	Turret: φ240mm×362. 1mm Control equipment: 486mm×325mm×85mm
Rotation	Azimuth: 360°continuous
ranger	Elevation:+20°~-110° (horizontal forward is 0°)
Stabilization accuracy	<0.035mrad (RMS)
Recording time	≥5 hours
Visible light:
Features like autofocus and image enhancement
Resolution	1920×1080, color
FOV	2.3°×1.3°~50°×28. 1°continuous
Effective working distance	Detection range: ≥8km (For life-saving kayaks of 3m×3m); Identification range: ≥5km (For life-saving kayaks of 3m×3m)
IR:
Features such as polarity conversion, non-uniform correction, and image enhancement
Resolution	Mid-wave 640×512 (Stirling cooling)
FOV	1.84°×1.5°~35°×28°continuous
Effective working distance	Detection range: ≥8km (For life-saving kayaks of 3m×3m); Identification range: ≥5km (For life-saving kayaks of 3m×3m)
Laser rangefinder:
Operating wavelength	1535nm (eye safe)
Ranging range	30m～8000m
PS	28VDC, peak current is no more than 5A
External interface:
Video interface	One digital video output One HD-SDI format high definition video output

Communication interface	One RS422
Environment adaptability:
Operation temperature	-40℃~+60℃
Storage temperature	-45℃~+70℃

Note:We offer professional OEM/ODM services including solution design and manufacturing for all products, and have a full-process technical support team.

Core Functions

Quad-Mode Operation: Manual/Lock/Scan/Auto-track
Dual-Band Continuous Zoom: Visible & IR optical zoom + auto-focus
Advanced Image Processing: Polarity switching, NUC, image enhancement
Target Geolocation: GPS coordinates via aircraft data fusion
HD Recording: 1080p video + metadata storage

Applications

Defense: MALE/HALE UAVs (e.g., Predator, Reaper), armored vehicle recon
Energy: Offshore platform monitoring, pipeline security
Homeland Security: Border surveillance, C-UAS operations
Disaster Response: Search & rescue in low-visibility conditions

Operational Workflow

Mounting: Hardpoint integration (aircraft/vehicle)
Activation: Auto-stabilization in <5 sec
Mission Execution:
- Search: 60°/s panoramic scan
- Track: Auto-lock targets (boats/vehicles)
- Lase: 8km ranging + GPS tagging
Data Output: HD-SDI/Ethernet streaming + onboard recording
