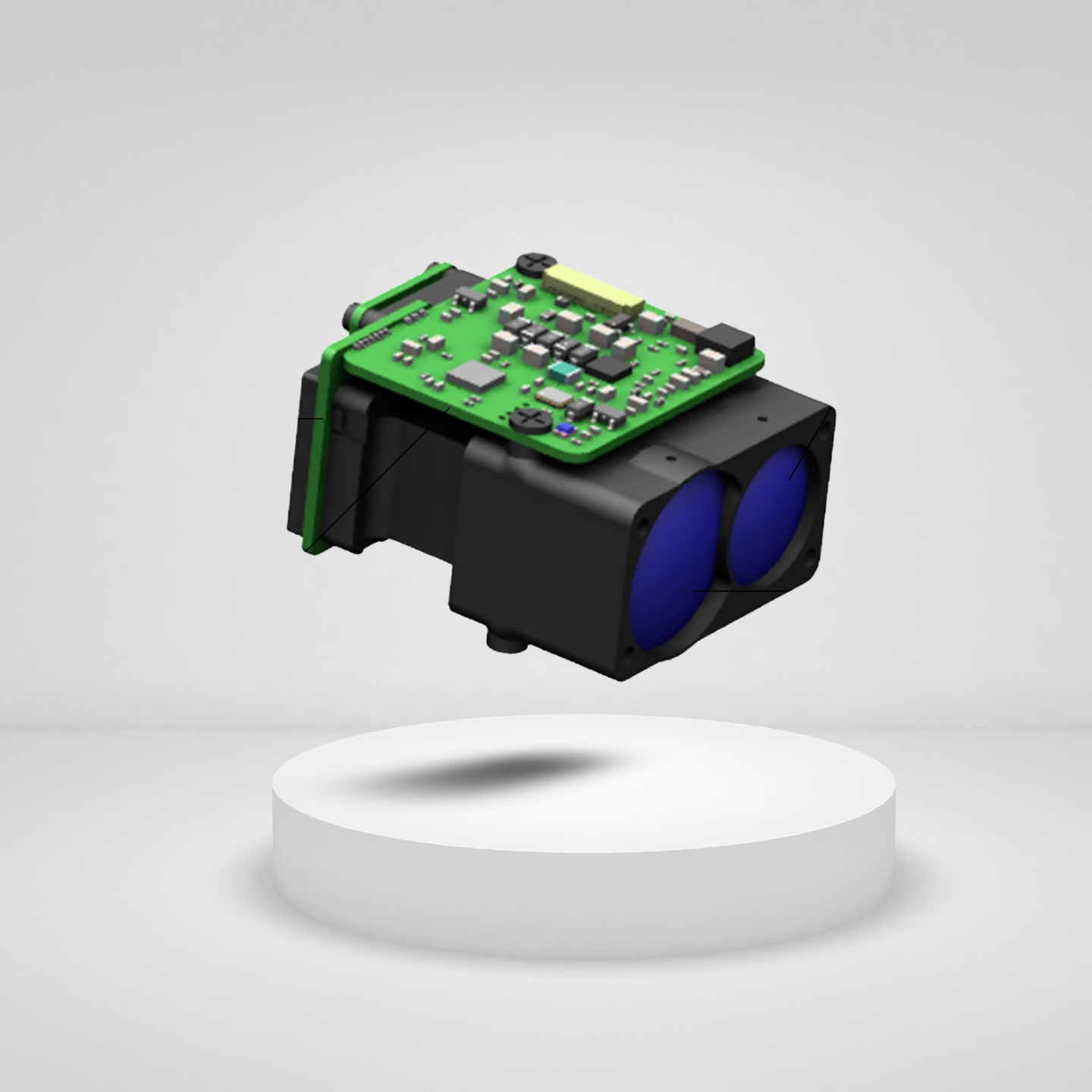

Key Product Highlights
- Ultra-Compact & Lightweight: Weighing only 50g with a minimal footprint, it integrates easily into space-constrained setups.
- Wide Measuring Range: Capable of measuring distances from 0.05m up to 200m, depending on target reflectivity and environmental conditions.
- High-Frequency Operation: Adjustable acquisition frequency from 1–20 kHz, with an output frequency ≥100 Hz, ensuring real-time data for dynamic applications.
- Robust Environmental Durability: Operates reliably in temperatures from -40°C to +65°C, suitable for outdoor and harsh industrial environments.
- High Accuracy: Offers precision within ±0.05m (for distances ≤10m) and 0.1m (beyond 10m), supporting high-precision tasks.
Main Functions & Features
- Adaptive Frequency Output: The output frequency adjusts automatically based on target reflectivity, optimizing performance under varying conditions.
- Dual Communication Interfaces: Supports 3.3V TTL or RS422 serial communication, with configurable baud rates up to 921600 bps.
- Low Power Consumption: Consumes under 2W during operation, ideal for battery-powered systems.
- Eye-Safe Laser wavelength: 905nm ±10nm laser ensures safety compliance and stable performance.
Typical Applications
This micro laser rangefinder is widely used in:
- UAVs & drones for obstacle avoidance and terrain mapping
- Robotics for navigation and object detection
- Industrial automation and positioning systems
- Intelligent transportation and vehicle assistance systems
- Surveying equipment and precision measurement tools
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Wavelength | 905nm ± 10nm @ 25°C |
| Acquisition Frequency | Adjustable from 1 to 20 KHz |
| Output Frequency | ≥ 100 Hz (The actual output frequency adapts based on target reflectivity, falling below the acquisition frequency for low-reflectivity targets) |
| Maximum Range | ≥ 200m (Target Reflectivity ≥ 50%, Visibility ≥ 5 km, Relative Humidity ≤ 60%) ≥ 120m (Target Reflectivity ≥ 10%, Visibility ≥ 5 km, Relative Humidity ≤ 60%) |
| Minimum Range | ≤ 0.05m |
| Ranging Accuracy | ≤ ± 0.05m (for distances ≤ 10m) ≤ 0.1m (for distances > 10m) |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -50°C to +85°C |
| Ranging Capability | Under conditions of visibility ≥ 5 km and relative humidity ≤ 60%, the laser rangefinder shall achieve a maximum range of over 200 meters with an accuracy rate greater than 98%. |
