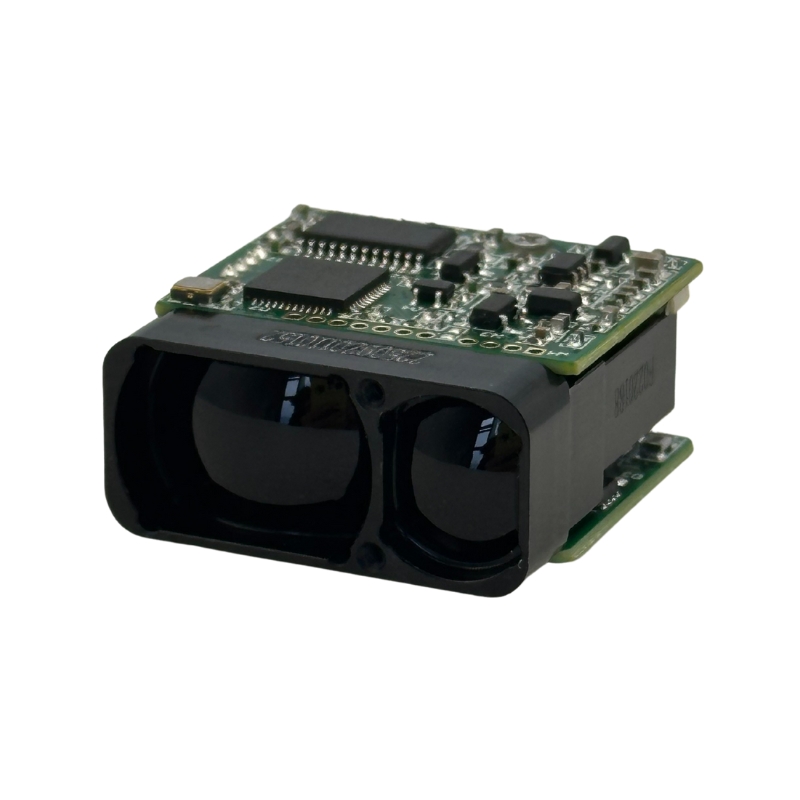

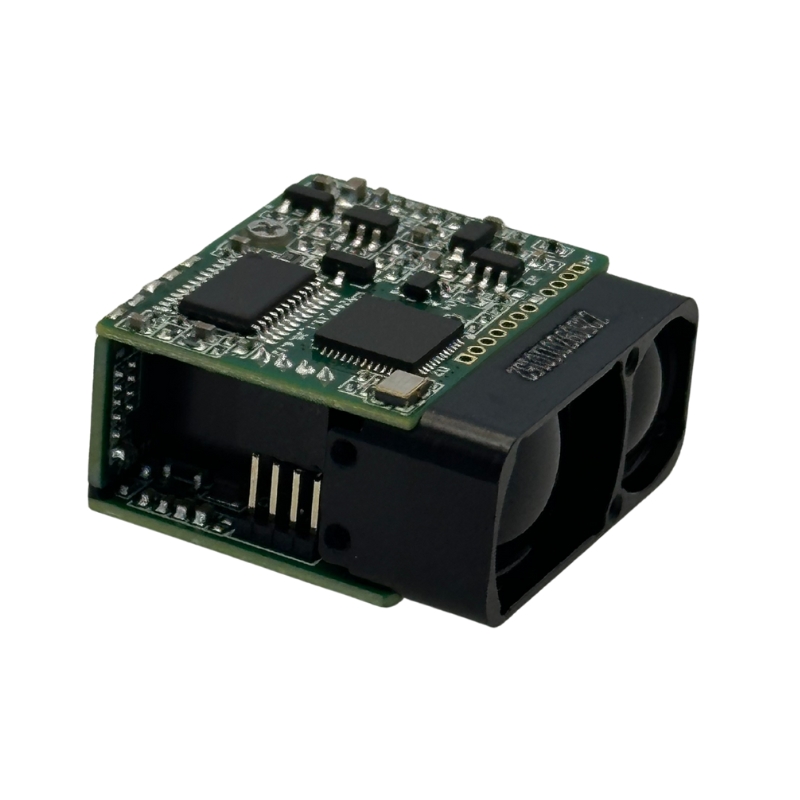

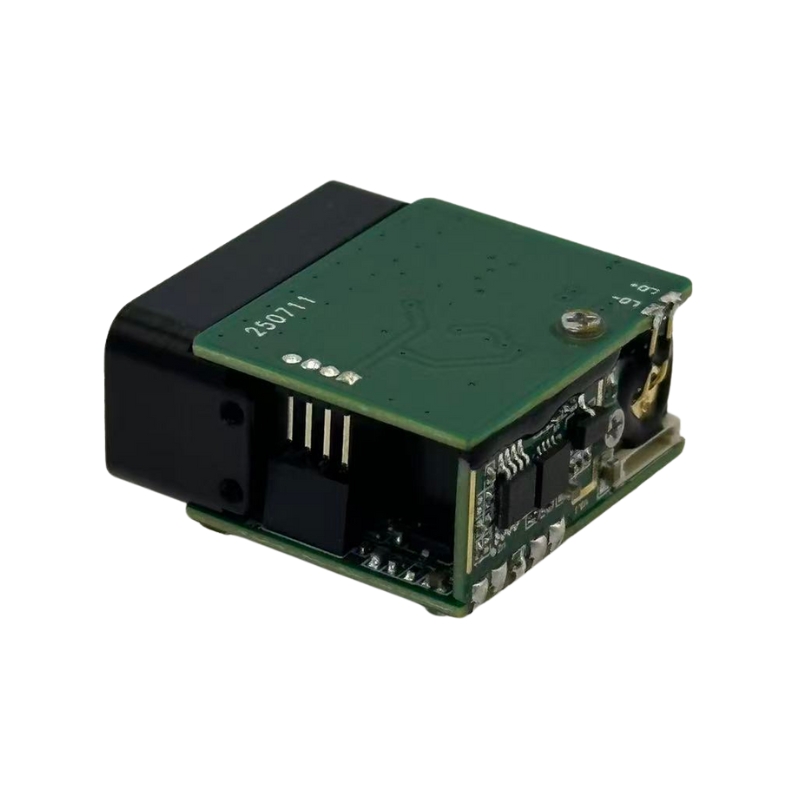

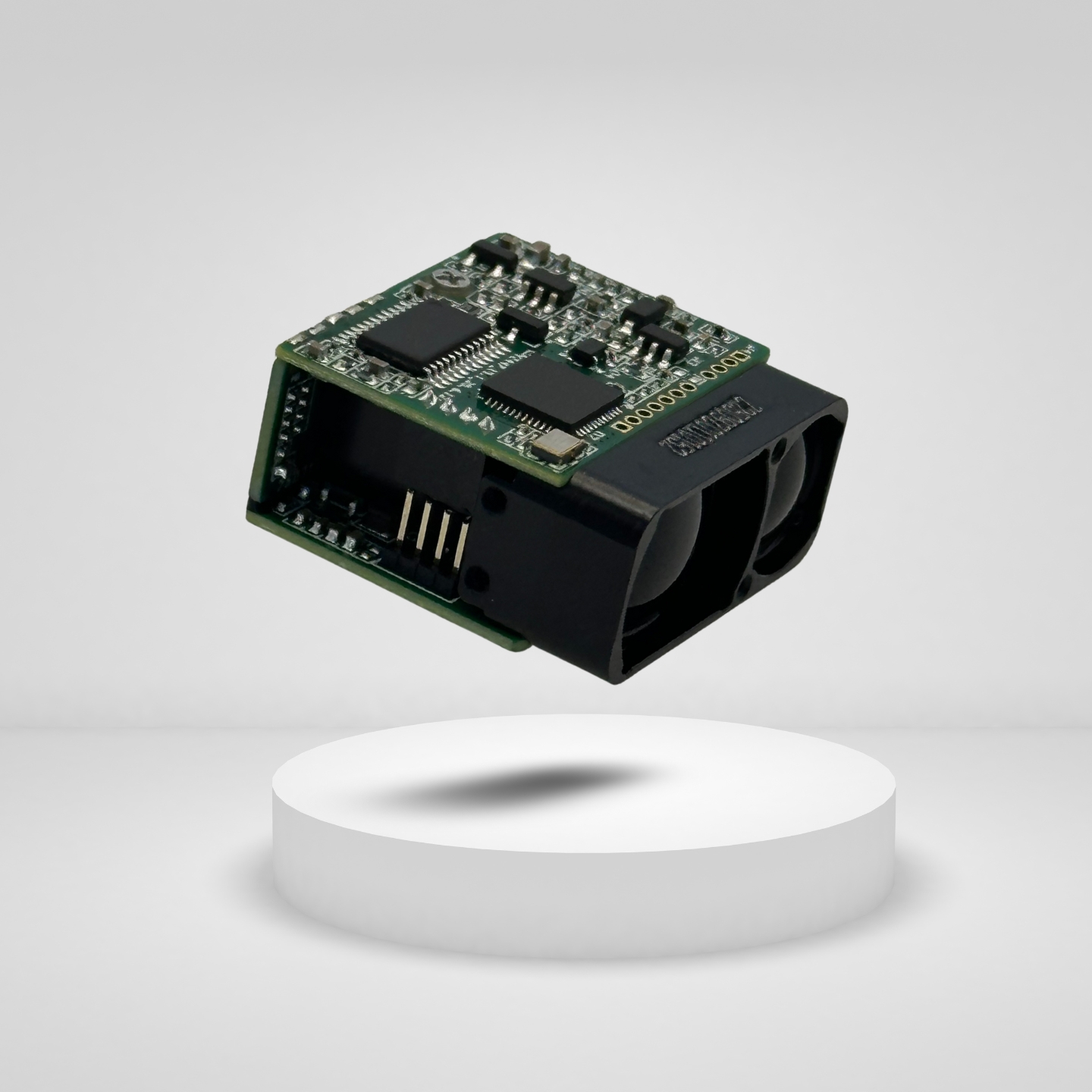

905nm Laser Rangefinder Module 1500m SFA1500C

Key Selling Points

• Impressive Long-Distance Ranging: This laser rangefinder achieves a maximum measuring distance of ≥1500m for large targets (under optimal conditions: visibility ≥5km, high reflectivity targets), ensuring reliable performance in outdoor and industrial scenarios.
• High Measurement Precision: With an accuracy of ±1m and a target hit rate of ≥98%, the laser rangefinder delivers consistent and precise distance data, critical for applications requiring reliable measurements.
• Ultra-Compact and Lightweight Design: Boasting dimensions of ≤25.8mm×24.6mm×12.8mm and a weight of only 10±0.5g, this compact laser rangefinder enables easy integration into various devices without adding excess bulk.
• Stable and Efficient Operation: Supports multiple ranging frequencies (single, 1Hz, 2Hz) to adapt to different usage needs. Features low standby power consumption (≤1W) for energy-efficient performance.
• Strong Environmental Adaptability: Operates reliably in a temperature range of -20℃～+60℃ and is suitable for use in environments with humidity ≤80%, making it durable for global outdoor and industrial conditions.
• Secure and Durable Construction: Equipped with electrostatic protection and airtight design, the laser rangefinder resists damage from static, moisture, and minor environmental hazards, ensuring long service life.

Functions

• Core Distance Measurement: The laser rangefinder emits laser light to the target and calculates distance based on flight time, providing accurate distance data for specific objects.
• Multiple Ranging Modes: Supports single measurement, 1Hz continuous measurement, and 2Hz continuous measurement, allowing users to select the optimal mode for their application.
• Real-Time Data Feedback: Returns distance information (integer and decimal parts) and measurement status (success/failure) via TTL serial port, enabling real-time monitoring and data analysis.
• Self-Test Function: Integrated self-test capability allows users to verify the laser rangefinder’s operational status, ensuring reliability before critical measurements.
• Stop Measurement Control: Features a dedicated command to stop continuous measurement, providing flexible operation for dynamic scenarios.

Application Areas

• Outdoor Surveillance & Security: Ideal for security monitoring systems, perimeter protection, and outdoor surveillance equipment, providing real-time distance data for target tracking.
• Industrial Automation: Integrated into robotic systems, industrial control equipment, and production lines for precise distance detection and positioning.
• UAV & Aerospace: Compatible with unmanned aerial vehicles (UAVs) and small aircraft, offering lightweight and compact distance measurement for navigation and mission-critical tasks.
• Surveying & Mapping: Used in portable surveying tools, geographic information collection devices, and outdoor mapping equipment for accurate distance data.
• Transportation & Logistics: Applied in vehicle distance monitoring, logistics scheduling, and traffic management systems to enhance operational efficiency.
• Hunting & Outdoor Sports: A reliable companion for hunting gear and outdoor adventure equipment, providing accurate distance measurements for target acquisition.

Technical Specifications
