Top Selling Points
- Ultra-Lightweight (85g) with IP67 protection
- Plug-and-Play Integration via open-source SDK
- Real-Time Data Output (10Hz refresh rate)
- Energy Efficiency (0.05W standby power)
Applications:
- Drone-based topographic mapping
- Autonomous vehicle navigation
- Smart warehouse inventory management
- Solar farm maintenance monitoring
Specifications:
| Parameter | Performance Indicator |
|---|---|
| Operating Wavelength | 905nm ± 10nm |
| Emission Aperture | φ7.2mm |
| Reception Aperture | φ19mm |
| Baud Rate | 115200 bps |
| Ranging Capability | ≥1500m (on large targets) |
| Ranging Blind Zone | ≤10m |
| Ranging Accuracy | ±1m (when measuring range < 300m) ±2m (when measuring range ≥ 300m) |
| Correct Measurement Rate | ≥98% |
| False Alarm Rate | ≤2% |
| Ranging Frequency | Single, 1Hz, 2Hz |
| Weight | ≤20g |

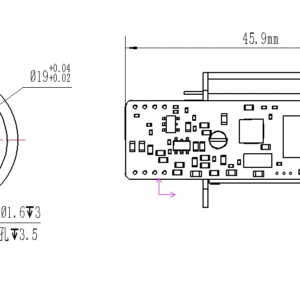

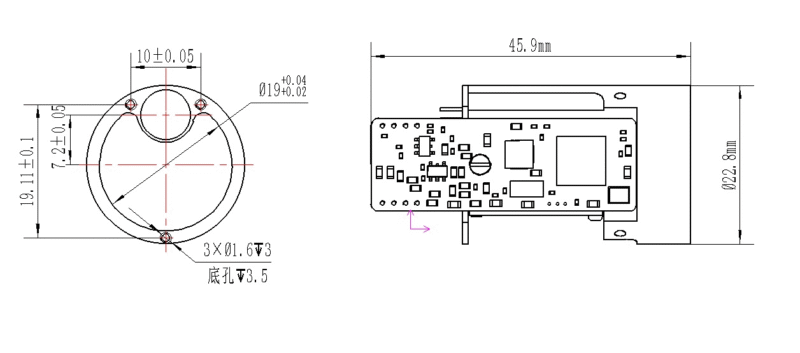

| Dimensions | ≤φ23mm × 46mm |
| Electrical Interface | Socket: A1002WR-S-4P Plug: LNN100-157128-200-4P |
| Supply Voltage | 3V ~ 5V (Typ. DC 3.3V) |
| Standby Power Consumption | ≤0.4W @ 3.3V |
| Average Power Consumption | ≤0.5W @ 3.3V |
| Peak Power Consumption | ≤1.2W @ 3.3V |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃ ~ +60℃ |
| Function | Laser Ranging, Data output via serial port |

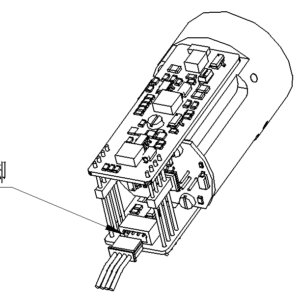

Electrical Interface
The electrical interface specifications are as follows:
- Power Supply Voltage: 2.5V to 3.5V (Nominal 3.3V)
- Standby Power Consumption: ≤0.6W @3.3V
- Average Power Consumption: ≤0.8W @3.3V
- Connector Compatibility: The host computer connects to the rangefinder via an LNN100-157128-200-4P connector for interface testing with the rangefinder’s A1002WR-S-4P connector.
Certifications: CE, FCC, RoHS, REACH
Legal Compliance: Specifications meet EU/US export controls for civilian use. No ITAR/MLRS-related components.
[Contact SUNFLASER for OEM/ODM customization and bulk pricing.]
