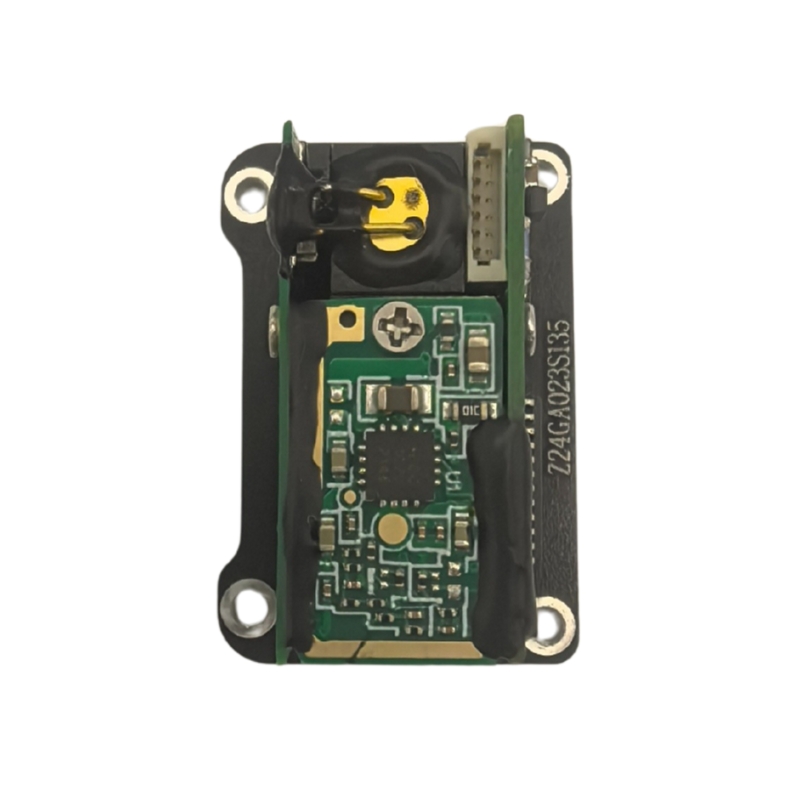

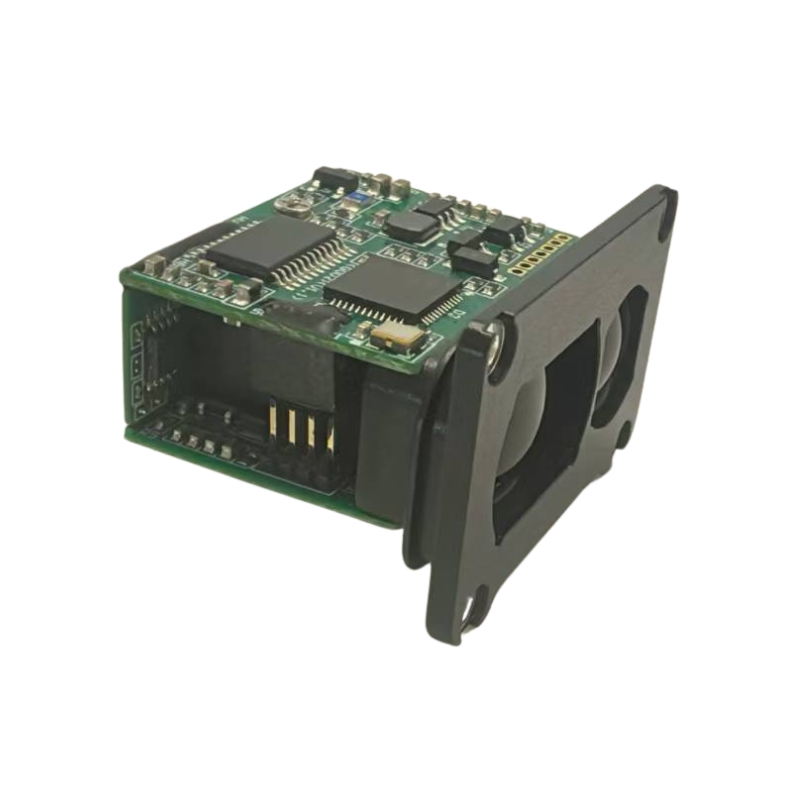

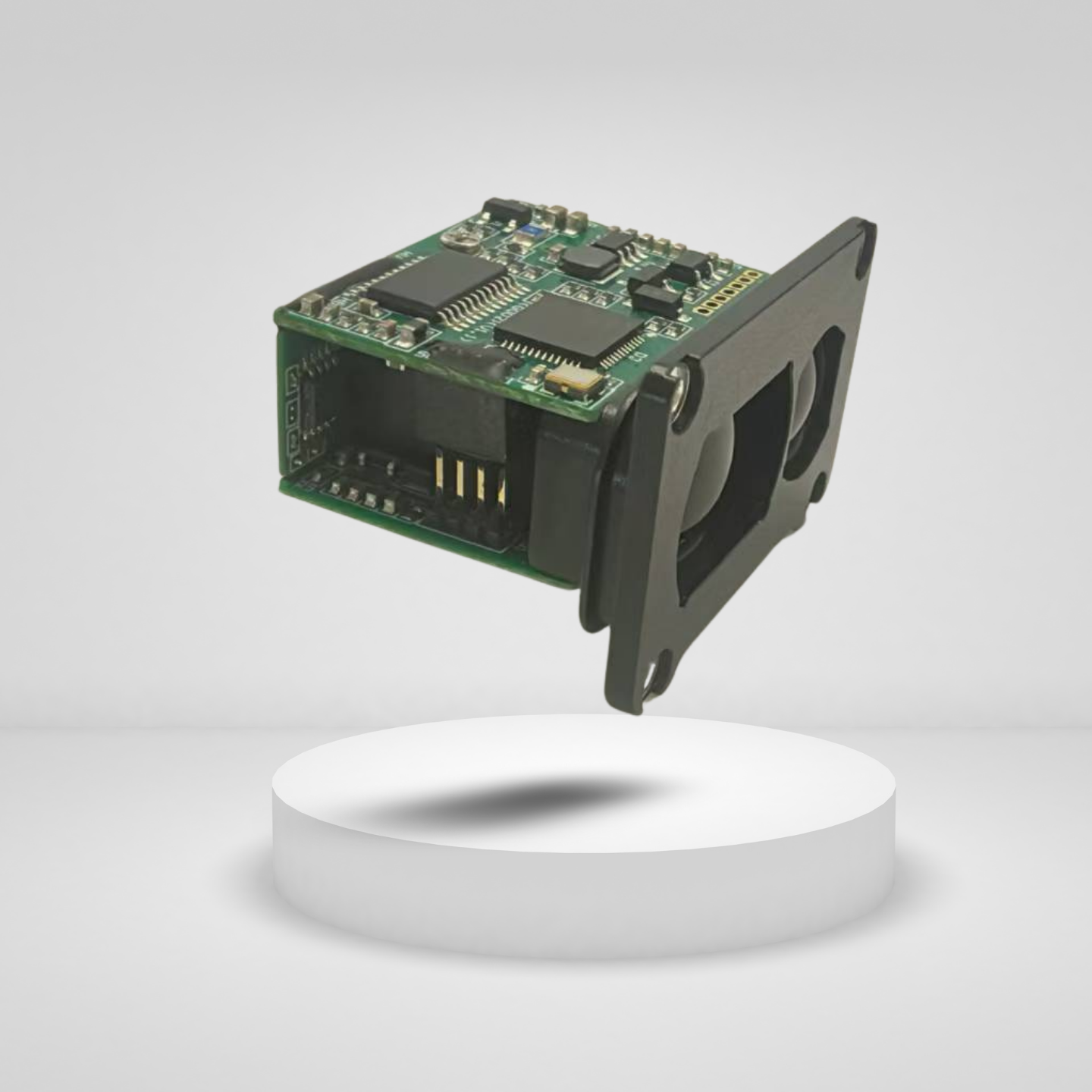

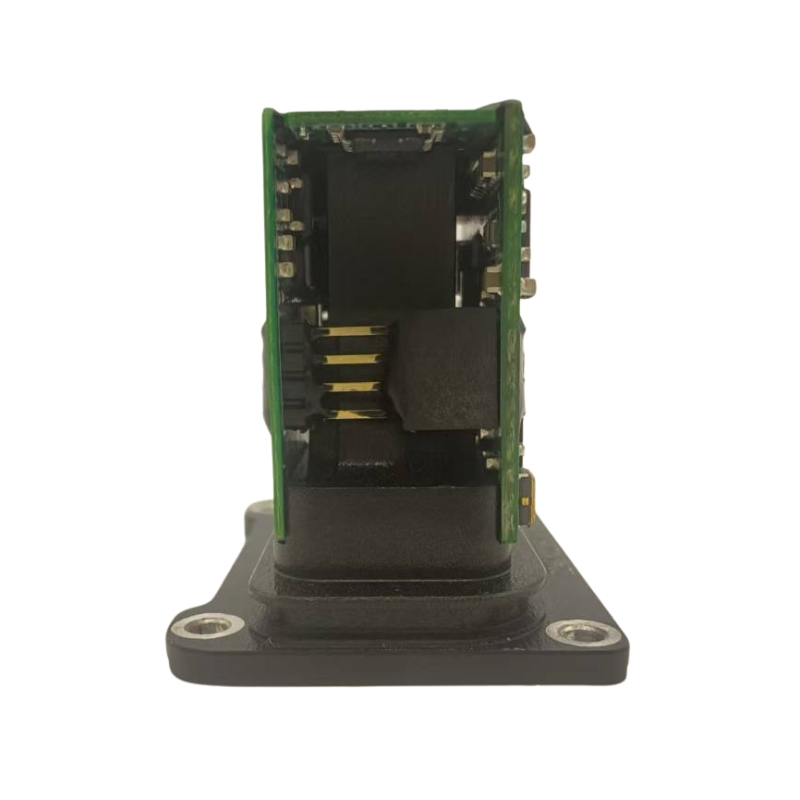

Key Selling Points
- Ultra-Compact & Lightweight
- Minimal footprint and weight (≤14.5g) enable effortless integration into compact designs without compromising performance.
- High Accuracy & Reliability
- Measures distances up to 1000m with accuracy up to ±1m (≤300m) and ±2m (>300m), achieving a success rate ≥98%.
- Robust Environmental Adaptability
- Operates in extreme temperatures (-40°C to +70°C) and withstands vibration, shock, and dust/water exposure (IP-rated protection).
- Low Power Consumption
- Standby power ≤0.6W, average power ≤0.8W, ideal for battery-dependent applications.
- Class 1 Laser Safety
- Compliant with IEC 60825-1, ensuring safe operation for users and environments.
Functions & Features
- Single/Continuous Ranging Modes: Supports flexible measurement commands via UART-TTL.
- Fast Response Time: ≤100ms boot-to-ranging latency.
- High Compatibility: Standard 3.3V UART-TTL interface (115200bps) simplifies integration.
Applications
- UAVs & Drones: Altitude measurement, obstacle avoidance.
- Robotics: Navigation, positioning, and environment mapping.
- Industrial Automation: Precision monitoring, conveyor systems.
- Security Systems: Intrusion detection, perimeter monitoring.
- Surveying Equipment: Portable distance measurement tools.
Technical Specifications
| Parameter | Specification / Description |
|---|---|
| Function: | |
| Laser Ranging | Distance measurement via laser time-of-flight principle |
| Performance: | |
| Operating Wavelength | 905nm ±5nm @25°C |
| Ranging Capacity | ≥1000m (Large target, reflectance 0.3, 60% RH, visibility ≥10km) |
| Minimum Measuring Distance | ≤3m |
| Accuracy | ≤±1m (≤300m), ≤±2m (>300m) |
| Correct Measurement Rate | ≥98% |
| Ranging Frequency | Single-shot, 1Hz |
| Stray Light | ≤10° |
| Environmental Adaptability: | |
| Operating Temperature | -20°C ~ 60°C (Verified at -30°C) |
| Storage Temperature | -35(±2)°C ~ 75(±2)°C (Pilot batch verification) |
| Shock Resistance | Withstands 1000G half-sine pulse impact (0.5ms duration, 20 times) along optical axis; optical axis change ≤0.3mil (tested with host system) |
| Dust/Water Resistance | Leakage ≤±0.4sccm @35kPa (tested with fixture) |
| Environmental Compliance | RoHS 2.0 (Reports provided for pilot & first mass production batches, subsequently as requested) |
| Safety Compliance | IEC 60825-1 Class 1 (Reports provided for pilot & first mass production batches, subsequently as requested) |
| Vibration Test (Pilot verification) | No loosening or performance degradation after 10min random vibration in three axes |
| Drop Test (Pilot verification) | No loosening or performance degradation after 5 free-fall drops from 1.0m height onto wooden floor (1 corner, 3 edges, 6 faces) |
Note: RH = Relative Humidity
Usage Guidelines
- Electrical Connection
- Ensure 3.3V power supply and correct UART-TTL wiring (refer to pin definitions in Section 2.2.2).
- Optical Window Maintenance
- Keep the optical window clean and free of fingerprints, dust, or scratches to maintain accuracy.
- Environmental Considerations
- Avoid measuring highly reflective targets at close range to protect detector components.
- Do not use in polluted environments or beyond specified storage temperatures.
- Safety Precautions
- Never disassemble or adjust internal components.
- Avoid direct eye exposure to the laser beam.
Why Choose SFA1000C?
- Engineering Excellence: Designed to meet military-grade durability standards (GJB 900A-2012).
- Global Compliance: RoHS 2.0 and IEC 60825-1 certified.
- Support: 1-year warranty and lifetime technical assistance from Shengfei Guangsu Technology.
