Key Features
- Triple-Sensor Integration:
30x Optical Zoom + 9x Digital Zoom (270x Hybrid Zoom): Capture ultra-clear details with a 2MP wide-dynamic CMOS sensor.
640×512 Thermal Imaging: 35mm lens, 12μm pixel pitch, and global temperature measurement (-20°C to 550°C).
5000m Laser Rangefinder: ±1m accuracy, Class 1 safety laser (1535nm).
- AI-Powered Tracking: Detect and follow up to 100 targets (humans/vehicles) in real-time, even with 2-second occlusion tolerance.
- Tri-Axis Stabilization: ±0.02° tilt/roll stability, 360° continuous rotation, and adaptive speed control.
- Dual Recording & Streaming: RTSP 1080P/30fps video, simultaneous TF card storage, and network file access.
- User-Friendly Controls: IP/S.BUS/serial port support, customizable PIP (Picture-in-Picture) modes, and 8+ pseudo-color displays.
Applications
- Public Safety: Search and rescue, crowd monitoring, and law enforcement.
- Industrial Inspection: Power line maintenance, pipeline monitoring, and solar farm checks.
- Environmental & Defense: Wildlife tracking, border surveillance, and military reconnaissance.
- Disaster Response: Firefighting, flood assessment, and post-disaster analysis.
Competitive Advantages
- Long-Range Precision: 5km laser measurement and thermal detection for critical missions.
- Lightweight & Durable: IP54-rated, operational in -10°C to +55°C environments.
- Seamless Integration: Compatible with most UAVs, RTSP streaming, and plug-and-play controls.
- Cost-Effective: Low power consumption (10W) reduces drone battery drain.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | DC12V-26.2V |
| Power Consumption | Dynamic 10W |
| Gimbal: | |
| Roll Angle | ﹣45°～ ﹢45° |
| Pitch Angle | -30°～ +120° |
| Yaw Angle | 360 Degree continuous rotation |
| Gimbal Mode | Support gimbal Lock/Follow mode; One-click return to the initial position |
| Control method | Speed self-adaption and controllable, external control of IP network or TTL serial |
| Visible Light Camera: | |
| CMOS Size | 1/2.8inch 2MP wide dynamic range CMOS SENSOR |
| Optical Zoom | 30x Optical Zoom, f=4.5～135 mm ±5% |
| Focusing Time | Real time fast focusing, focusing time < 1s |
| Video Output | IP/HDMI output; RTSP 1080P video stream, Local TF 1080P recording |
| Field Angle (FOV) | D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5% |
| Support mode | 1080P 30fps |
| Laser Range: | |
| Laser wavelength | 1535±10nm safety for eyes |
| Detect range | 50--5000m |
| Accuracy / Resolution | Accuracy±1m; Ranging resolution ≤ 40m |
| Thermal imaging: | |
| Resolution | 640*512 pixel |
| Pixel spacing | 12μm |
| Type | Uncooled infrared microbolometer camera |
| Wavelength range | 8～14μm |
| Thermal sensitivity (NETD) | ≤50mk@F1.0@25℃ |
| Contrast ratio, Pseudo color | Adjustable, multiple pseudo color modes switch |
| Field Angle | 35mm Lens，Angle：12.52°x 10.03° |
| Measurement (Optional) | Highest temperature, lowest temperature, all area temperature display |
| Target recognition and tracking: | |
| Min tracking target size | 16×16 pixels |
| Max tracking target size | 256×256 pixels |
| Target Memory Time | 2 seconds |
| Tracking speed | 50 Pixel/Frame max |
| Simultaneous detection qty | 100 targets max |
| Recognized categories | Human and Vehicle |
| Min detection target size | 32×32 pixels |

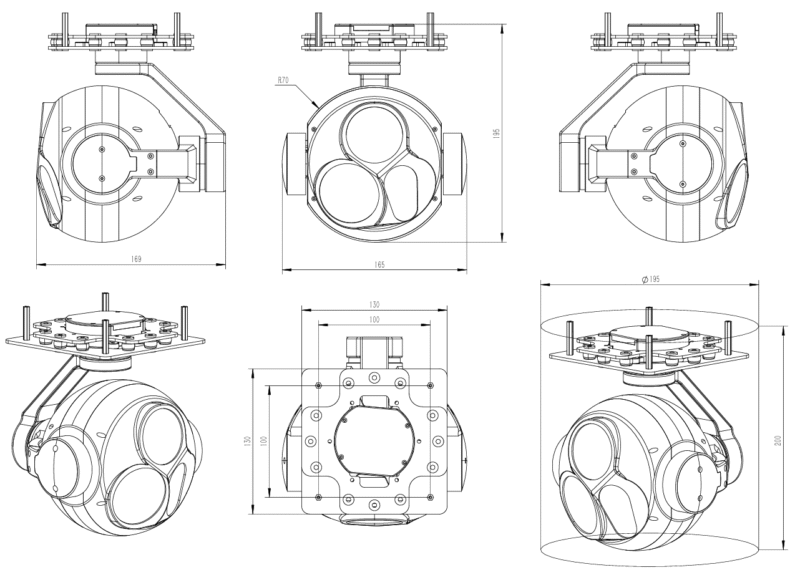

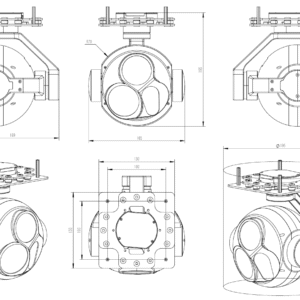

| Device Size | φ：195mm H:200mm |
| Work Condition | -10℃~ +55℃ / 20% ~ 80% RH |
| Storage Condition | -20℃ ~ +60℃ / 20% ~ 95% RH |
| Application | UAV aerial photography |
| Weight | 1580±20g |
Compliance & Certifications
- Laser Safety: Compliant with IEC 60825-1 (Class 1).
- EMC/Environmental: Meets CE/FCC standards .
- RoHS: Lead-free components.
Usage Workflow
- Mounting: Attach to drones via 100x100mm M3 mounting holes.
- Power & Connect: Use 8-pin interface (12–26.2V input) and configure via IP/S.BUS/serial.
- Control: Access RTSP streams , toggle PIP/thermal modes, and adjust zoom via ground station software.
- Record & Analyze: Save footage to TF card or network storage, use AI tracking for target prioritization.
