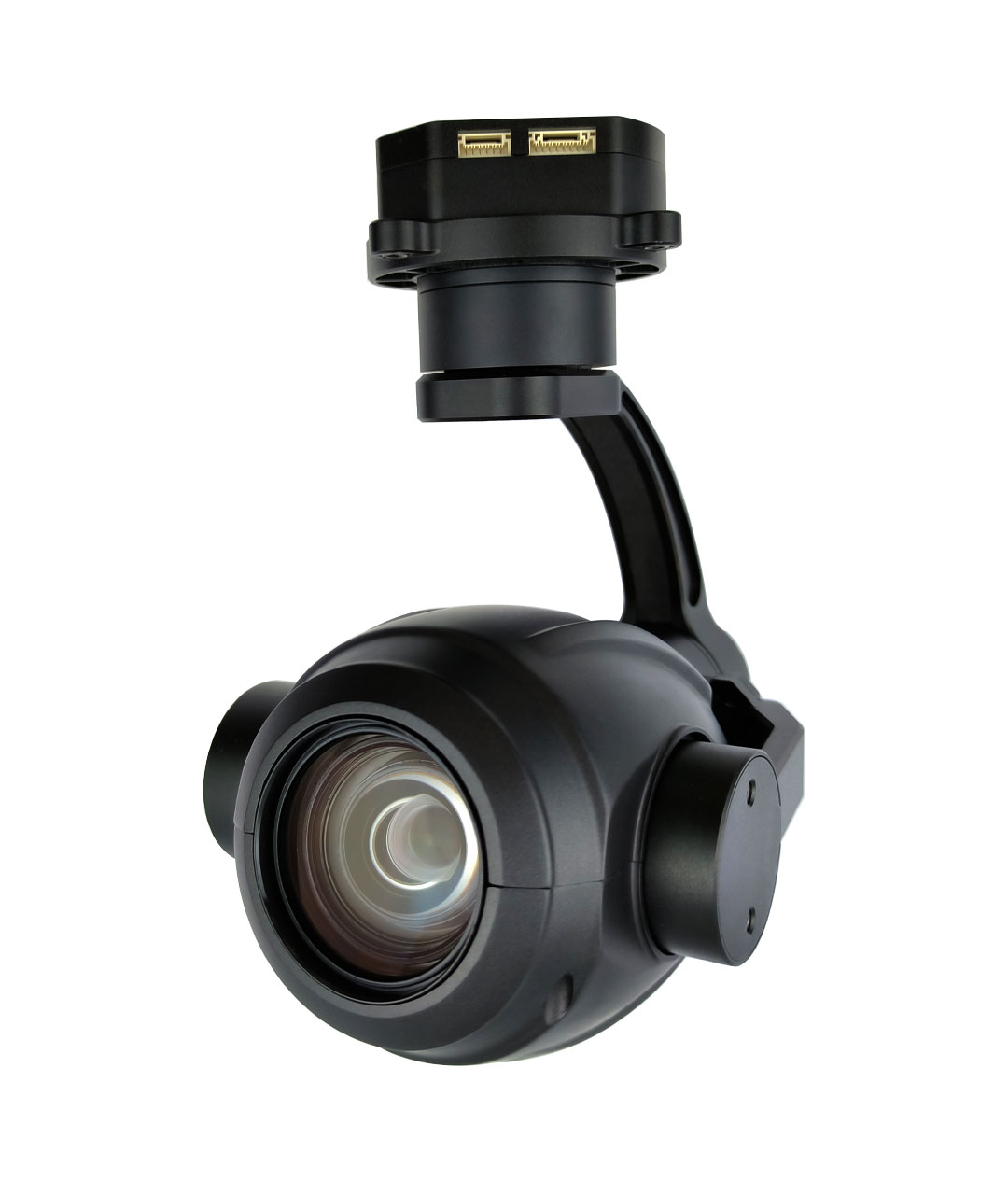

Electro-Optical Pod SFSKY207

Key Features

140x Hybrid Zoom：
- 20x Optical Zoom + 7x Digital Zoom: Capture ultra-clear details even from great distances.
- 6.7–125mm Focal Length Range: Flexible from wide-angle to telephoto, suitable for a variety of applications.
Three-Axis Stabilization
- ±0.02° Roll/Pitch Precision: Eliminates vibration for smooth footage in dynamic conditions.
- -280° to +280° Yaw Range: Full panoramic control with adaptive speed according to zoom level.
Low-Light Performance
- STARVIS2 Sensor: 8MP resolution, 0.29 lux sensitivity for clear night vision.
AI Tracking
- Detects and tracks over 100 targets (vehicles, people) with a minimum tracking size of 16x16px.
Dual Recording and Streaming
- 4K/1080P H.264 Video: Local storage on a 128GB TF card (Class 6 or higher) and real-time RTSP streaming.
- 170ms Low Latency: Ideal for real-time monitoring and control.
Lightweight and Durable
- Weighs 690g: Compact design (109.6 × 110 × 170mm), easily integrated into drones.
- Operates from -10°C to +55°C: Designed for harsh environments.

Applications

Public Safety: Surveillance, suspect tracking, and disaster response.
Industrial Inspection: Power line monitoring, pipeline inspection, and infrastructure surveys.
Search and Rescue: Rapid target detection in low-light wilderness or urban areas.
Environmental Monitoring: Wildlife observation and ecological research.

Unique Selling Points (USP)

Hybrid Zoom + AI Tracking: Unmatched detail and automation for critical missions.
Multiple Control Interfaces: Supports IP, SBUS, and serial protocols; controlled via intuitive PC/mobile applications.
Plug-and-Play Setup: Quick installation and 10-second initialization.
Adaptive Speed Mode: Automatically adjusts pan/tilt speed according to zoom level to ensure precision.

Technical Specifications

Parameter	Specification
Voltage	DC12V-26.2V
Power	6.72W
Technical Parameters:
Roll Angle	-45°～ +45°
Pitch Angle	-30°～ +120°
Yaw Angle	-280°～ +280°
Jitter Angle	±0.02°
Horizontal Jitter Angle	±0.03°
One-Click Restore	One-click restore to the initial position
Adjustable Gimbal Speed	Use low speed control at big zoom status for high precision display. Use fast speed control at small zoom status
Visible Light Camera:
SENSOR	1/1.8 Inch 8 mega Pixels STARVIS2, low-noise CMOS SENSOR
Zoom	20x HD optical zoom lens, f=6.7±5%～125±5%mm
Focus	Focus in real time, less than 1 secs
Video Output	Ethernet (RTSP) output, Local TF card 4K,1080p recording
Field of Vision(FOV)	D : WIDE 66.6°±5% TELE 4.0°±5% H : WIDE 59.6°±5% TELE 3.5°±5% V : WIDE 35.7°±5% TELE 2.0°±5%
Video mode	4K 30fps/1080P 30fps
Target recognition and tracking:
Min tracking target size	16×16 pixels
Max tracking target size	256×256 pixels
Target Memory Time	2 seconds
Tracking speed	50 Pixel/Frame max
Simultaneous detection qty	100 targets max
Recognized categories	Human and Vehicle
Min detection target size	32×32 pixels
Control mode	IP, SBUS or Uart command control, App/Software

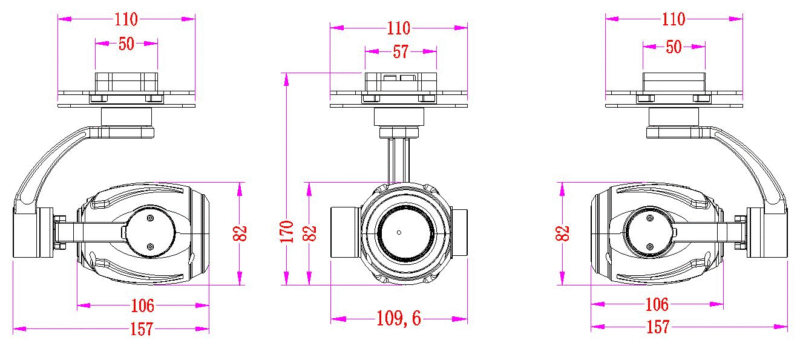

Gimbal Size	110mm×157mm×170mm
Working Condition	-10℃ ~ +55℃ / 20% ~ 80% RH
Storage Environment	-20℃ ~ +60℃ / 20% ~ 95% RH
Weight	670±10g

User Guide

Installation:Mount using an 80×80mm M3 bracket; connect to power and control interfaces.
Ground Control:Use software for real-time streaming (RTSP), zoom/focus adjustment, and AI tracking.
Storage Management:Access files via SMB protocol or remove the TF card.
Maintenance:Clean the lens with a microfiber cloth; avoid extreme humidity.

Certification (Customizable)

CE/FCC: Electromagnetic compliance (available upon request).
IP Rating: Dust and waterproof protection (optional).

Why Choose Us?

SUNFLASER Innovation: Over 10 years of expertise in UAV payload development.
Tailored Solutions: Custom compliance and integration support.
Global Support: 24/7 technical service.

Enhance your mission capabilities with the SF-TPD20S78—combining precision and reliability.

Note: Compliance certifications (CE/FCC) and IP ratings can be added according to customer requirements. For OEM/ODM inquiries, please contact us.
