Key Selling Points
- Superior Accuracy: ±1m precision with 40m resolution for critical applications.
- Long-Range Performance: Measures up to 5,300m (2.3m×4.6m target).
- Eye-Safe Design: 1535nm infrared laser (Class 1M compliance).
- Compact & Lightweight: ≤85g weight and 62×43×32mm size for easy integration.
- Rugged Durability: Operates in -40°C to +60°C, IP-rated protection against dust/humidity.
- Low Power Consumption: ≤4W working power for extended use.
- Versatile Modes: Single-shot, 1Hz/5Hz continuous scan, and distance gating.
Features
- RS422 communication for seamless system integration.
- Self-test, temperature reporting, and firmware update capabilities.
- First/last target recognition and blind zone avoidance (≤50m).
Applications
- Industrial automation and robotics.
- UAV navigation and terrain mapping.
- Security surveillance and perimeter monitoring.
- Outdoor sports and wildlife observation.
Specifications
| Parameter | Performance Indicator |
|---|---|
| Operating Wavelength | 1535nm ±10nm |
| Ranging Capacity | ≥5300m (on a 2.3m×4.6m standard target or equivalent) |
| Blind Zone | ≤50m |
| Accuracy | ±1m |
| Correct Measurement Rate | 98% |
| Measurement Frequency | Single-shot, 1Hz, 5Hz |
| Distance Resolution | ≤40m |
| Weight | ≤85g |
| Dimensions | ≤62mm×43mm×32mm |
| Power Supply | 10V~14V DC |
| Power Consumption | Standby: ≤1.8W Operating: ≤4W |
| Environmental Compliance | Operating Temp.: -40°C ~ +60°C Storage Temp.: -50°C ~ +70°C |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
Electrical Interface
The electrical interface requirements are as follows:
- Supply Voltage: 12V (operating range: 10V–14V).
- Operating Power: ≤4W.
- Standby Power: ≤1.8W.

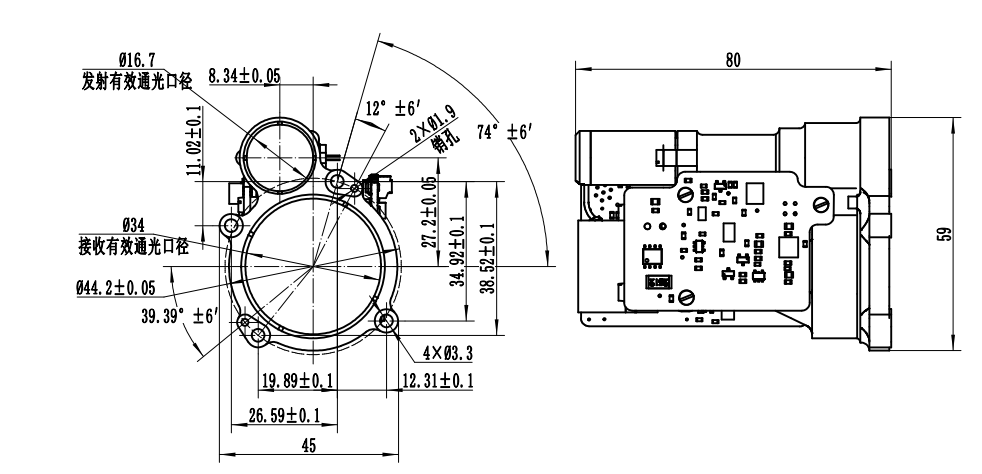

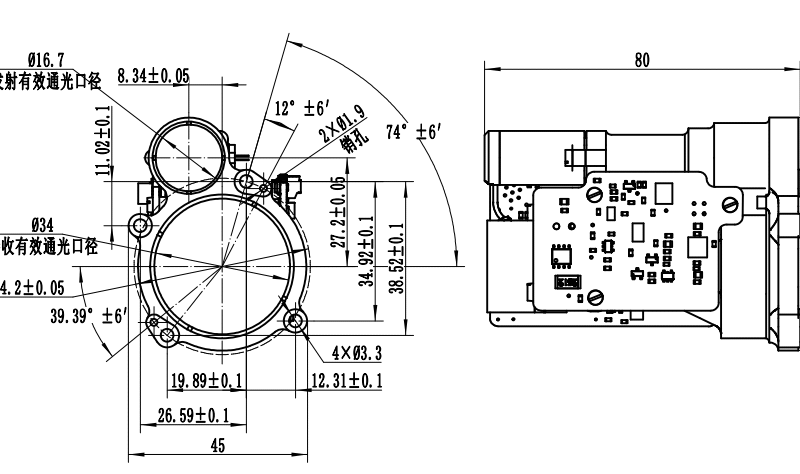

- Connector: The host computer connects to the rangefinder via a 1.25mm-pitch 10-pin connector for interconnection testing. The pin definitions for power and communication are listed in Table 1, with Pin 1 location shown in the following Figure.
Table: Power Supply and Communication Port Pin Definitions
| Pin Number | Label | Electrical Definition | Signal Direction |
|---|---|---|---|
| P-1 | VIN+ | Power Supply Positive Input | Power Supply |
| P-2 | VIN- | Power Supply Negative Input | Power Supply |
| P-3 | NC | Not Connected | |
| P-4 | RS422_TXD+ | Signal Input Port | Rangefinder to Host |
| P-5 | RS422_TXD- | Signal Input Port | Rangefinder to Host |
| P-6 | RS422_RXD- | Signal Output Port | Host to Rangefinder |
| P-7 | RS422_RXD+ | Signal Output Port | Host to Rangefinder |
| P-8 | GND | RS422 Ground | |
| P-9 | SWDIO | Data Port | For firmware programming |
| P-10 | SWCLK | Clock Port | For firmware programming |
Compliance
- CE, RoHS, ISO 9001
