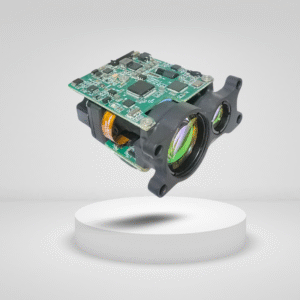

Key Selling Points
- Eye-Safe & Compact: 1535nm laser ensures safety compliance; ultra-small design (50mm×36.5mm×24mm) for easy integration.
- High Precision: ±1m accuracy with 98%+ success rate.
- Versatile Modes: Single-shot, 1Hz, or 5Hz measurement; first/last target differentiation.
- Robust Performance: Operates in extreme temperatures (-40°C to +60°C) and harsh environments.
- Low Power: 0.5W standby, 2W average consumption.
Applications
- Drone navigation & obstacle avoidance
- Robotics and automation systems
- Industrial measurement & surveying
- Security surveillance & traffic monitoring
- Research and environmental mapping
Main Functions
- Laser Ranging
- Power-On & Temperature Monitoring
- Distance Gating Capability
- First/Last Target Priority Measurement
- Self-Diagnostic
Specifications
| Parameters | Index |
|---|---|
| Operating Wavelength | 1535nm ±10nm |
| Max. Measurement Range | ≥3200m |
| Blind Zone | ≤15m |
| Accuracy | ±1m |
| Correct Measurement Rate | ≥98% |
| Resolution | ≤40m |
| Measurement Frequency | Single-shot, 1Hz, 5Hz |
| Weight | ≤58g |

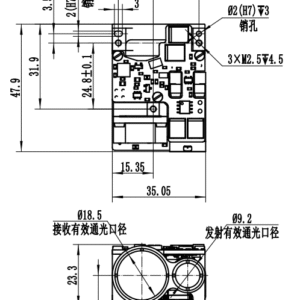

| Dimensions | ≤50mm × 36.5mm × 24mm |
| Input Voltage | 4.8V ~ 8.5V |
| Power Consumption | Standby: ≤0.5W;Average: ≤2W |
| Environmental Adaptability | Operating Temp.: -40°C ~+60°C Storage Temp.: -55°C ~ +70°C |
Electrical Interface
The host connects to the rangefinder via the DF52-10P-0.8C connector (host side) and DF52-10S-0.8H connector (rangefinder side) for cross-testing. The pin definitions for the rangefinder’s power supply and communication ports are listed in the followingTable (transmit/receive directions are relative to the rangefinder). The position of Pin 1 on the connector is shown in the following Figure.
Table: Pin Definitions for Rangefinder Power Supply and Communication Ports
| Pin No. | Label | Electrical Definition | Remarks |
|---|---|---|---|
| P-1 | VIN+ | Positive power input | Power supply for the rangefinder |
| P-2 | VIN+ | Positive power input | ^ |
| P-3 | COM | Negative power input | ^ |
| P-4 | COM | Negative power input | ^ |
| P-5 | RS422_TXD+ | Signal output port | Rangefinder to host |
| P-6 | RS422_TXD- | Signal output port | ^ |
| P-7 | RS422_RXD- | Signal input port | Host to rangefinder |
| P-8 | RS422_RXD+ | Signal input port | ^ |
| P-9 | TTL_RXD | Signal input port | 3.3V TTL |
| P-10 | TTL_TXD | Signal output port | 3.3V TTL |
Compliance
- CE, RoHS, and FCC certified.
