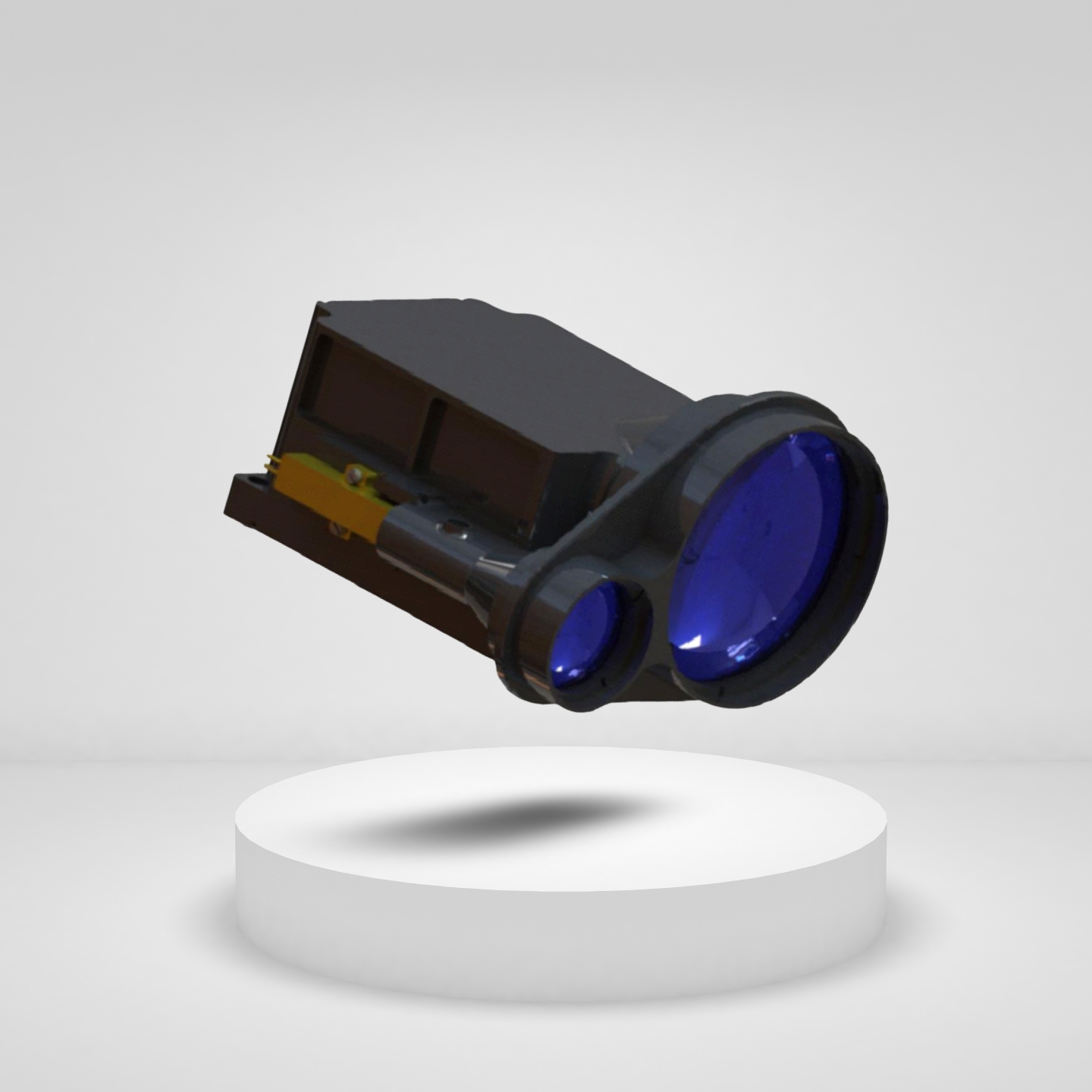

the SFB3000AW medium laser rangefinder sets a new standard for long-distance detection, combining exceptional performance, human-centric safety, and rugged design. Engineered to meet the stringent demands of international markets, this high-performance laser rangefinder delivers reliable distance data across diverse scenarios, from drone tracking to security surveillance and industrial automation. Whether for professional users , the SFB3000AW laser rangefinder integrates cutting-edge technology with user-friendly features to solve complex measurement challenges.
Exceptional Long-Range Capability: This laser rangefinder achieves impressive distances—up to 11km for large targets, 8km for vehicle-sized targets (2.3m×4.6m), 5km for humanoid targets (1.7m×0.5m), 3km for DJI Phantom 4 drones, and 2km for DJI Mavic 3 Pro drones—outperforming most medium-sized models for long-distance detection.
Class Ⅰ Eye Safety: With a 1535nm laser wavelength and Class Ⅰ eye safety rating, the SFB11000AW laser rangefinder ensures safe operation without compromising performance, aligning with global safety standards for professional equipment.
Superior Precision & Reliability: Boasting a measurement accuracy of ≤±2m, a 98% measurement success rate, and a ≤1% false alarm rate, this laser rangefinder delivers trustworthy data for critical decision-making in high-stakes scenarios.
Wide Temperature Adaptability: Operable in extreme temperatures from -40℃ to +60℃ and storable from -45℃ to +70℃, the SFB11000AW laser rangefinder maintains stability in harsh environments, from freezing polar regions to scorching industrial sites.
Flexible Measurement Frequencies: Supports single-shot measurement and continuous ranging at 1Hz, 2Hz, 3Hz, 4Hz, 5Hz, or 10Hz, adapting to dynamic tasks like moving target tracking or real-time monitoring.
Robust & Compact Design: Weighing ≤670g and measuring ≤143mm×114mm×80mm, this medium laser rangefinder balances portability with durability, integrating seamlessly into fixed systems or mobile platforms.
Functions
Dual Target Ranging: Captures both first and last target distance data, ideal for scenarios like multi-object tracking or obstacle detection in complex environments.
Distance Gating Function: Allows users to set custom gating values to focus on specific distance ranges, reducing interference and improving measurement accuracy.
Powerful Communication Options: Communicates via RS422 (TTL customizable) with adjustable baud rates (115200bps, 57600bps, 38400bps, 9600bps), ensuring compatibility with diverse upper-level devices.
Onboard Temperature Monitoring: Collects environmental temperature data in real time, providing insights into operating conditions and ensuring optimal performance.
Low Power Control: Features standby power consumption ≤3W and average power consumption ≤5W@28V@1Hz, extending operational time for battery-powered applications.
Serial Port Program Update: Enables convenient firmware updates via the serial port, ensuring the laser rangefinder stays up-to-date with the latest features and improvements.
Application Areas
Drone & UAV Tracking: Perfect for monitoring small drones (e.g., DJI Mavic 3 Pro, Phantom 4) at distances up to 3km, supporting security, aerial surveying, and industrial inspection tasks.
Security & Surveillance: Enhances perimeter protection systems, military surveillance, and border control by detecting targets up to 11km, providing early warning for potential threats.
Industrial Automation: Integrated into manufacturing lines, material handling systems, and robotic platforms to monitor long distances between components, ensuring precise operations.
Aerospace & Defense: Used in aircraft tracking, missile guidance support, and military training exercises, leveraging its long-range capability and rugged design.
Marine & Navigation: Assists in ship navigation, coastal surveillance, and offshore platform monitoring, delivering reliable distance data even in harsh marine environments.
Wildlife Conservation & Research: Enables non-intrusive tracking of animals or remote habitats, with long-range measurement reducing disturbance to natural ecosystems.
