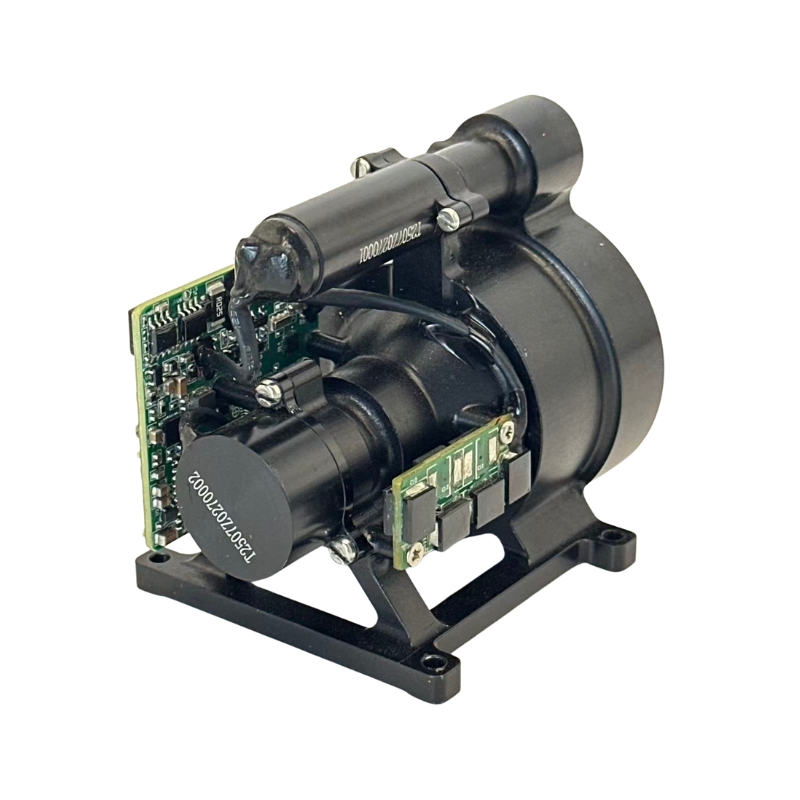

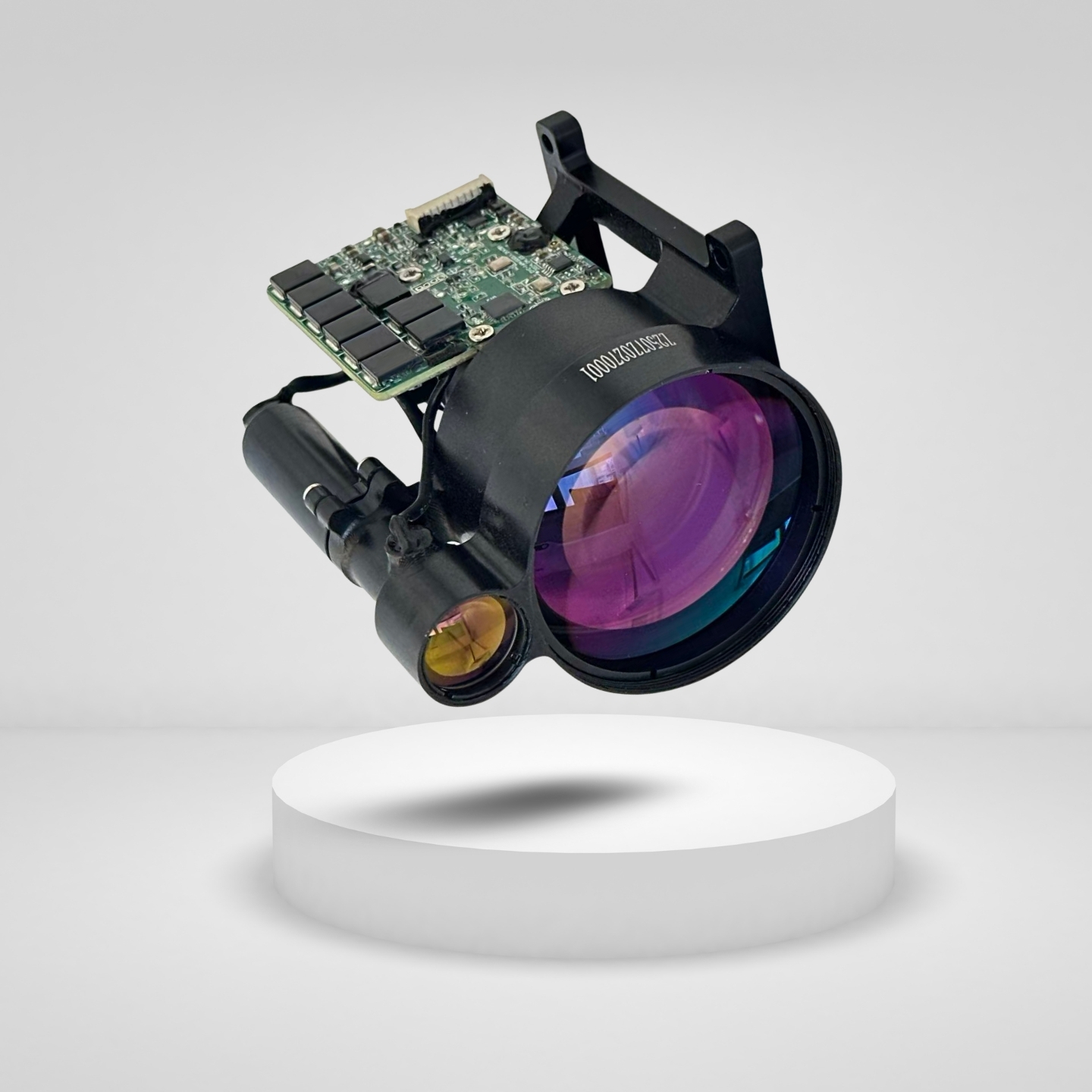

Key Features & Benefits
- High Accuracy & Long Range
- Measures distances from 5m to 2000m with an accuracy of ±0.3m (@100m) and ±0.3% of distance (>100m).
- Capable of first/last target recognition and distance gating for complex scenarios.
- Eye-Safe Laser Technology
- Uses a 1535nm wavelength laser, compliant with international safety standards, ensuring safe operation in diverse environments.
- Compact & Lightweight Design
- Dimensions: 55mm × 45mm × 30mm; weight: ≤100g.
- Ideal for space-constrained applications like drones, robotics, and portable systems.
- Low Power Consumption
- Average power: ≤1.5W (@12V); peak power: ≤5W.
- Supports extended operation in battery-powered devices.
- Environmental Resilience
- Operating temperature: -20°C to +60°C; storage temperature: -30°C to +70°C.
- Suitable for harsh conditions, including outdoor and industrial settings.
- Advanced Functionality
- Self-test mode with temperature monitoring and laser usage tracking.
- Configurable baud rate (115200/57600/38400/9600 bps) for flexible integration.
Applications
The SFB2000AW laser rangefinder is engineered for:
- Drones & UAVs: Navigation, obstacle avoidance, and terrain mapping.
- Robotics: Precision movement and spatial awareness.
- Surveying & Mapping: High-accuracy distance measurement for geomatics.
- Security & Surveillance: Perimeter monitoring and intrusion detection.
- Industrial Automation: Positioning and alignment in manufacturing.
- Research & Development: Data collection and experimental setups.

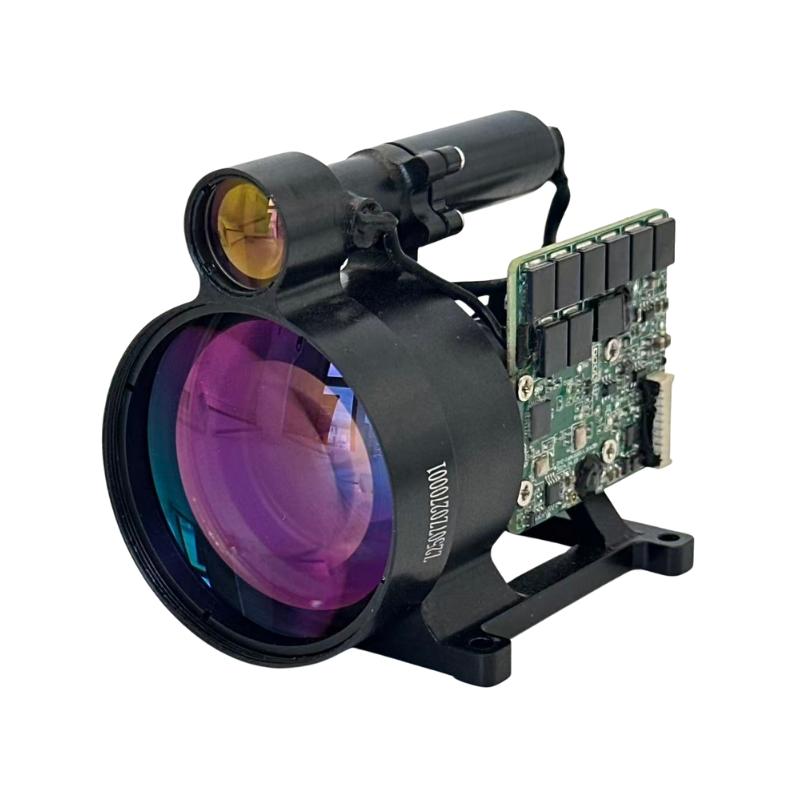

Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1535nm±10nm |
| Emission Aperture | Φ15.2mm |
| Receiving Aperture | Φ47mm |
| Maximum Range | ≥1.5km (visibility ≥10km, relative humidity ≤60%, target reflectivity: 30%, DJI Mavic 3 Pro UAV or equivalent target: 0.1m×0.2m) ≥2km (visibility ≥10km, relative humidity ≤60%, target reflectivity: 30%, DJI Phantom 4 UAV or equivalent target: 0.2m×0.3m) |
| Blind Zone | ≤20m |
| Accuracy | ≤±2m |
| Accuracy Rate | ≥98% |
| Distance Resolution | ≤38m |
| Frequency | Single-shot, 1Hz, 2Hz, 3Hz, 4Hz, 5Hz, 10Hz |
| Communication Interface | RS422/TTL (optional) |
| Baud Rate | 115200bps (default), 57600bps, 38400bps, 9600bps |
| Power Supply Voltage | 5V～14V (typical value: 12V) |
| Standby Power Consumption | ≤1mW (low power consumption mode) |
| Average Power Consumption | ≤1.5W@12V@1Hz |
| Peak Power Consumption | ≤5W@12V@1Hz |
| Electrical Interface | 10PIN connector (for cross-link test with upper computer) |
| Electrical Isolation | Communication ground isolated from power ground and digital ground |
| Weight | ≤210g |
| Dimension | ≤62mm×72mm×80.5mm |
| Operating Temperature | -40℃～+60℃ |
| Storage Temperature | -45℃～+70℃ |
| Environmental Protection Standard | Complies with RoHS 2.0 |
| Key Functions | Laser ranging function, first/last target ranging function, distance gating function, self-test function, UART program update function, power-on and temperature collection function, cumulative laser emission count function |
Note 1: Parameters marked with * are design values or theoretical calculations, for reference only.
Note 2: The nominal range and accuracy are achieved under the environment of visibility not less than 10Km and relative humidity not greater than 60%. The ranging ability and accuracy of the rangefinder may vary under different environments and target conditions. Please refer to the actual measurement. If the rangefinder is used on a stable platform, ensure that the stable platform can track the target steadily, otherwise it will have a certain impact on the ranging or accuracy of the rangefinder.
