Key Selling Points
- Extended Range: 300m–18km capability with 0.3mrad beam divergence
- Military Durability: Operates at 9km altitude, resistant to shock/vibration
- Smart Power: 21-31V DC wide voltage input for aviation/vehicles
- Ultra-Precise: 98% accuracy rate with adaptive environmental calibration
Applications
- Aerial surveying
- Defense systems
- Search & rescue drones
- Infrastructure inspection
- Forestry management
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1540± 10 nm |
| Preparation Time | ≤ 1 min |
| Laser Energy | ≥ 200 µJ |
| Maximum Range | ≥ 18 km (Conditions: Ground visibility of 20 km, moderate atmospheric turbulence, target's diffuse reflectivity coefficient of 0.2, carrier aircraft flight altitude of 9 km; Target size: 10 m × 10 m) |
| Minimum Range | ≤300m |
| Accuracy | ≤±5m |
| Frequency | 1Hz、5Hz |
| Accuracy Rate | ≥98% |
| Beam Angle | ≤0.3mrad |
| Beam Pointing Instability | ≤ 0.03 mrad (1σ) |
| Communication Interface | TTL |

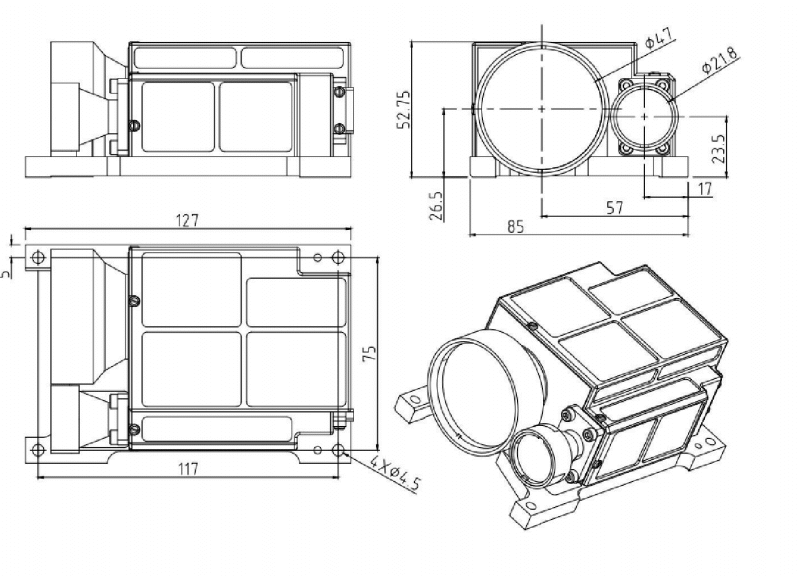

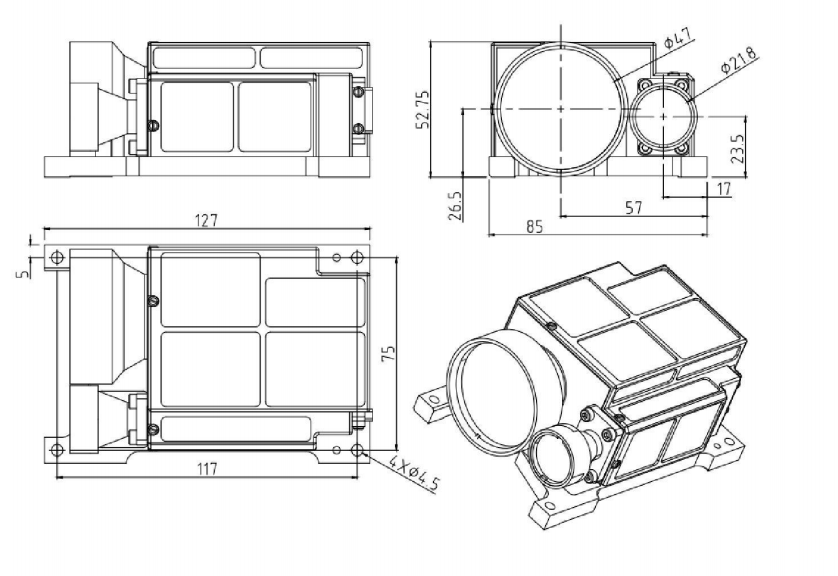

| Dimensions | (L)127mm×(W)85mm×(H)52.75mm |
| Weight | ≤400g |
| Supply Voltage | +22V ~ 29V (Input power: +28 VDC) |
| Peak Power Consumption | ≤20W |
| Average Power Consumption | ≤10W |
| Operating Temperature | -55℃~+70℃ |
| Storage Temperature | -55℃~+70℃ |
| Continuous Ranging Duration | Maximum continuous ranging time ≥1 min, with intervals ≤ 30 s. |
Note: All performance specifications and interfaces can be customized to meet specific requirements.
