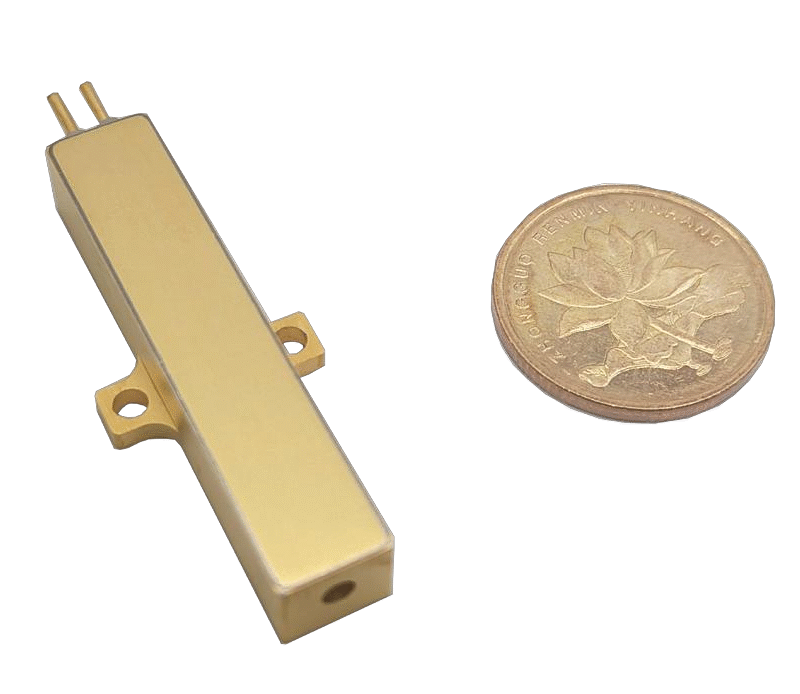

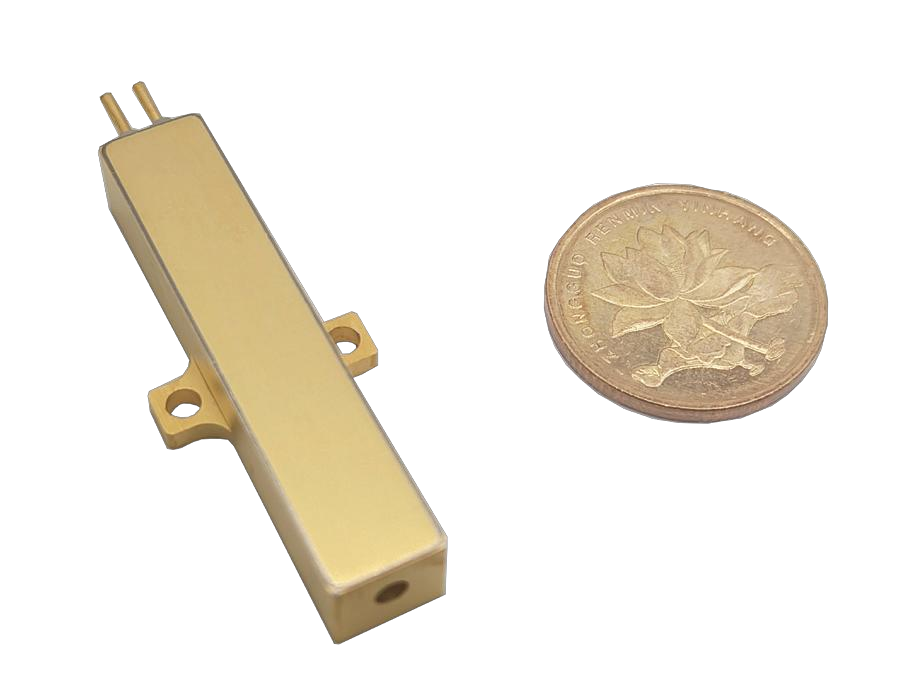

1535nm Erbium Glass Laser Module 800μJ,1000μJ SFB800/1000LJ

Key Features

• Based on Er:glass passive Q-switching technology for high-quality pulse output
• Class 1 laser product, fully compliant with eye-safe laser standards
• Integrated semiconductor pump module and laser crystal design for enhanced reliability
• Exceptional energy stability (RMS ≤ 3%) for consistent performance
• Narrow full-angle divergence (8-10mrad typical) for focused beam delivery
• Robust mechanical structure suitable for integration into complex systems

Application Areas

• Rangefinders: Ideal for precision distance measurement in industrial, defense, and aerospace rangefinders, leveraging stable pulse energy and beam quality for accurate readings.
• Meteorological Radar: Reliable for weather monitoring and forecasting systems, where the laser module’s wide temperature adaptability and pulse purity ensure consistent data collection in varying atmospheric conditions.
• Fuzes: Compatible with advanced fuze technologies, offering compact size, eye safety, and stable performance to support critical defense and security applications.

Technical Specifications

Note: All data in the above table are typical values tested at room temperature (25℃), and the final data shall be subject to the factory test report.
