Key Features
- Dual-Function Laser System: Integrates laser rangefinding (up to 25,000m) and encoded illumination (20Hz base frequency) for versatile targeting solutions.
- High Energy Output: ≥40mJ pulse energy with ±1μs encoding precision ensures reliable, repeatable performance.
- Rapid Operation: ≤1-minute startup time and 5Hz continuous ranging for real-time data acquisition.
- Military-Grade Durability: Operates in temperatures from -40°C ~ +60°C and withstands altitudes up to 4,500m.
- Built-In Diagnostics: Self-testing (power-on, startup, periodic) and fault reporting for minimal downtime.
Applications
- Defense & Security: Target acquisition, artillery guidance, and reconnaissance.
- Industrial Inspection: Long-range measurement for infrastructure, mining, and energy sectors.
- Search & Rescue: High-altitude or low-visibility environment operations.
- Drone Navigation: Integration with UAV systems for precision mapping.
Technical Specifications
| Parameter | Specification |
|---|---|
| Laser type | Uncooled semiconductor-pumped solid-state laser without temperature control |
| Laser wavelength | 1064 nm ± 3nm |
| Laser energy | ≥ 40 mJ |
| Laser pulse width | 15 ± 5 ns |
| Preparation time for operation | ≤ 1 min |
| Beam divergence angle | ≤ 0.4 mrad |
| Laser single pulse energy fluctuation within one cycle | ≤ 8% (excluding the first 2 seconds) |
| Laser ranging error | ± 5 m |
| Ranging frequency | 5 Hz |
| Fundamental frequency irradiation | 20 Hz |
| Laser coding | Reserved 8 groups of built-in fixed-frequency coding |
| Irradiation coding accuracy | ≤ ± 1 μs |
| Ranging distance (large target, ground-to-ground) | 300 m – 25,000 m (visibility not less than 23 km, moderate atmospheric turbulence, flight altitude 6 km, target reflection coefficient 0.2) |
| Continuous laser irradiation time | One irradiation time is not less than 60 seconds, with an interval not greater than 60 seconds, continuous irradiation for 2 cycles; after 2 cycles, the irradiation time interval after the next irradiation 30 minutes |
| Continuous laser ranging time | Not less than 1 min (5 Hz) |
| Parallelism between laser optical axis and installation reference plane | Deviation of laser optical axis / installation base plane ≤ 0.6 mrad |

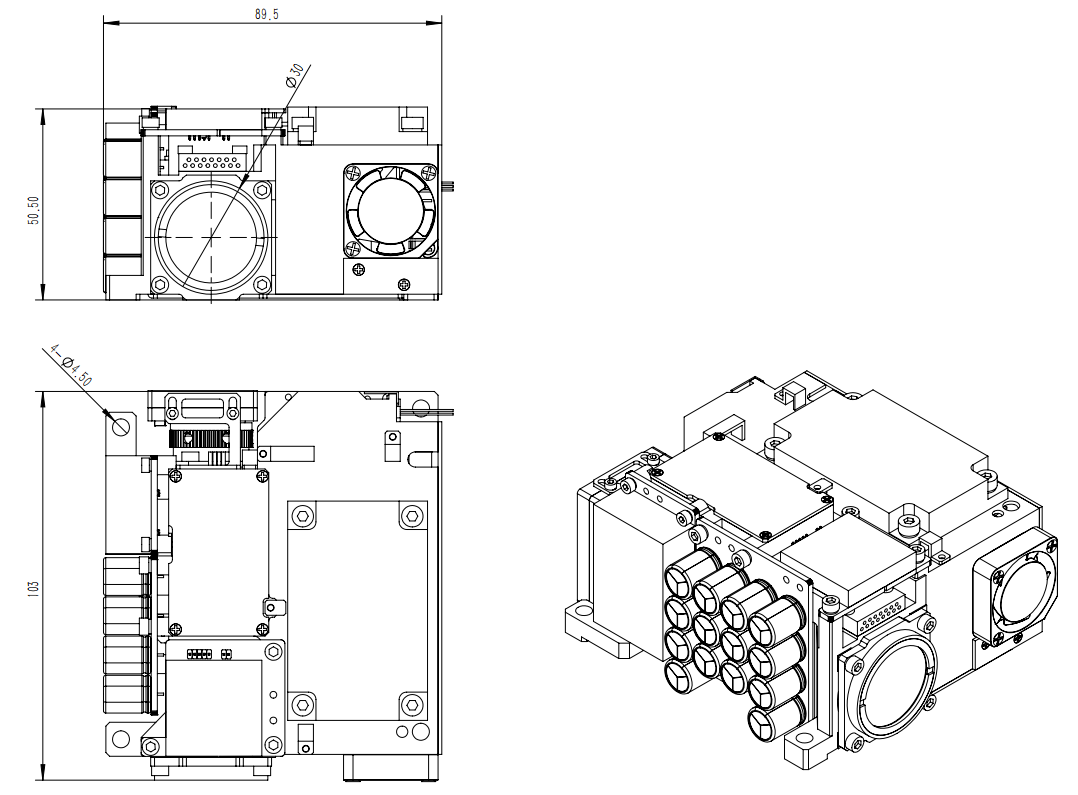

| Overall Dimensions (L × W × H) | ≤ 103 mm × 89.5 mm × 50.5 mm |
| Weight | ≤ 535 g |
| Operating Temperature | -40 ℃ ~ +60 ℃ |
| Storage Temperature | -55 ℃ ~ +70 ℃ |
| Max Operating Altitude | 4500 m |
Note：All performance specifications and interfaces can be customized to meet specific requirements.
Compliance & Certifications
- Tested to military environmental standards (referencing GJB 150A, GJB 151B).
- Meets electromagnetic compatibility (EMC) and maintenance requirements for defense applications.
Why Choose SFC40G?
- Compact & Lightweight: Easy integration into mobile platforms.
- Low Maintenance: 30-minute replacement time and modular design.
- Energy Efficient: Optimized power consumption for extended field use.
