Key Selling Points
✅ Cooled IR Advantage
- 3-5μm Cryogenically-Cooled Sensor: 2x detection range vs uncooled competitors (9km vs 4km)
- 640×512 Resolution: Identify 4×6m targets at NATO-standard ranges
✅ Precision Stabilization & Tracking
- ≤40μrad RMS Stability (Industry-leading)
- ≤0.1mrad Tracking Accuracy: Lock fast-moving threats at ≥10°/s
✅ Extended-Range Capabilities
- 8km Laser Rangefinding: Artillery-grade distance measurement
- Geo-Targeting: RTK-corrected coordinates via aircraft data fusion
✅ Heavy-Platform Ready
- Ruggedized Construction: Φ240×361mm | <10kg (fits Grey Eagle-class UAVs)
- 28VDC Power: <100W avg. consumption
Technical Specifications
| Weight | Turret:<9.8kg;Control equipment:<10kg | |

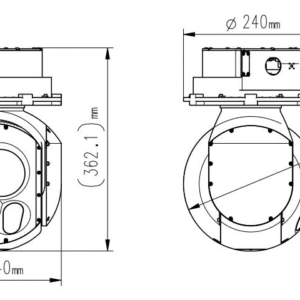

| Volume | Turret:φ240mm×362.1mm Control equipment:486mm×325mm×85mm |
|
| Rotation ranger |
Azimuth | 360°continuous |
| Elevation | +20°~-110°(horizontal forward is 0°) | |
| Stabilization accuracy |
<0.035 mrad (RMS) | |
| Recording time | ≥5 hours | |
| Visible light | Features like autofocus and image enhancement | |
| Resolution | 1920×1080, color | |
| FOV | 2.3°×1.3°~50°×28.1°continuous | |
| Effective working distance |
Detection range: ≥8km(For life-saving kayaks of 3m×3m) Identification range: ≥5km(For life-saving kayaks of 3m×3m) |
|
| IR | Features such as polarity conversion, non-uniform correction, and image enhancement | |
| Resolution | Mid-wave 640×512(Stirling cooling) | |
| FOV | 1.84⁰×1.5°~35°×28°continuous | |
| Effective working distance |
Detection range: ≥8km(For life-saving kayaks of 3m×3m) Identification range: ≥5km(For life-saving kayaks of 3m×3m) |
|
| Laser rangefinder |
Operating wavelength |
1.54μm(eyes safe) |
| Ranging range | 30m～8000m | |
| PS | 28VDC,peak current is no more than 5A | |
| External interface | Video interface | One digital video output One HD-SDI format high definition video output |
| Communication interface |
One RS422 | |
| Environment adaptability |
Operation temperature |
一 40℃~+60℃ |
| Storage temperature |
—45℃~+70℃ | |
Note:We offer professional OEM/ODM services including solution design and manufacturing for all products, and have a full-process technical support team.
Core Functions
- Quad-Mode Operation: Manual/Lock/Scan/Auto-track
- Dual-Band Continuous Zoom: Visible & IR optical zoom + auto-focus
- Advanced Image Processing: Polarity switching, NUC, image enhancement
- Target Geolocation: GPS coordinates via aircraft data fusion
- HD Recording: 1080p video + metadata storage
Applications
- Defense: MALE/HALE UAVs (e.g., Predator, Reaper), armored vehicle recon
- Energy: Offshore platform monitoring, pipeline security
- Homeland Security: Border surveillance, C-UAS operations
- Disaster Response: Search & rescue in low-visibility conditions
Operational Workflow
- Mounting: Hardpoint integration (aircraft/vehicle)
- Activation: Auto-stabilization in <5 sec
- Mission Execution:
- Search: 60°/s panoramic scan
- Track: Auto-lock targets (boats/vehicles)
- Lase: 8km ranging + GPS tagging
- Data Output: HD-SDI/Ethernet streaming + onboard recording
Compliance & Certifications
- MIL-STD-810H (Vibration/Temperature/Shock)
- FCC Part 15B (EMC)
- ITAR Controlled (USML Category VIII)
- CE/RoHS 3
